Description
Details
Specifications
Model
| Brand | DIYPC |
|---|---|
| Model | IDX4-MicroATX-ARGB |
Details
| Type | Mirco ATX Tower |
|---|---|
| Color | Black |
| Case Material | Steel / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | ITX / Micro ATX |
| Side Panel | yes |
| LED | ARGB |
Expansion
| Internal 3.5" Drive Bays | 1 |
|---|---|
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 5 |
Front Panel Ports

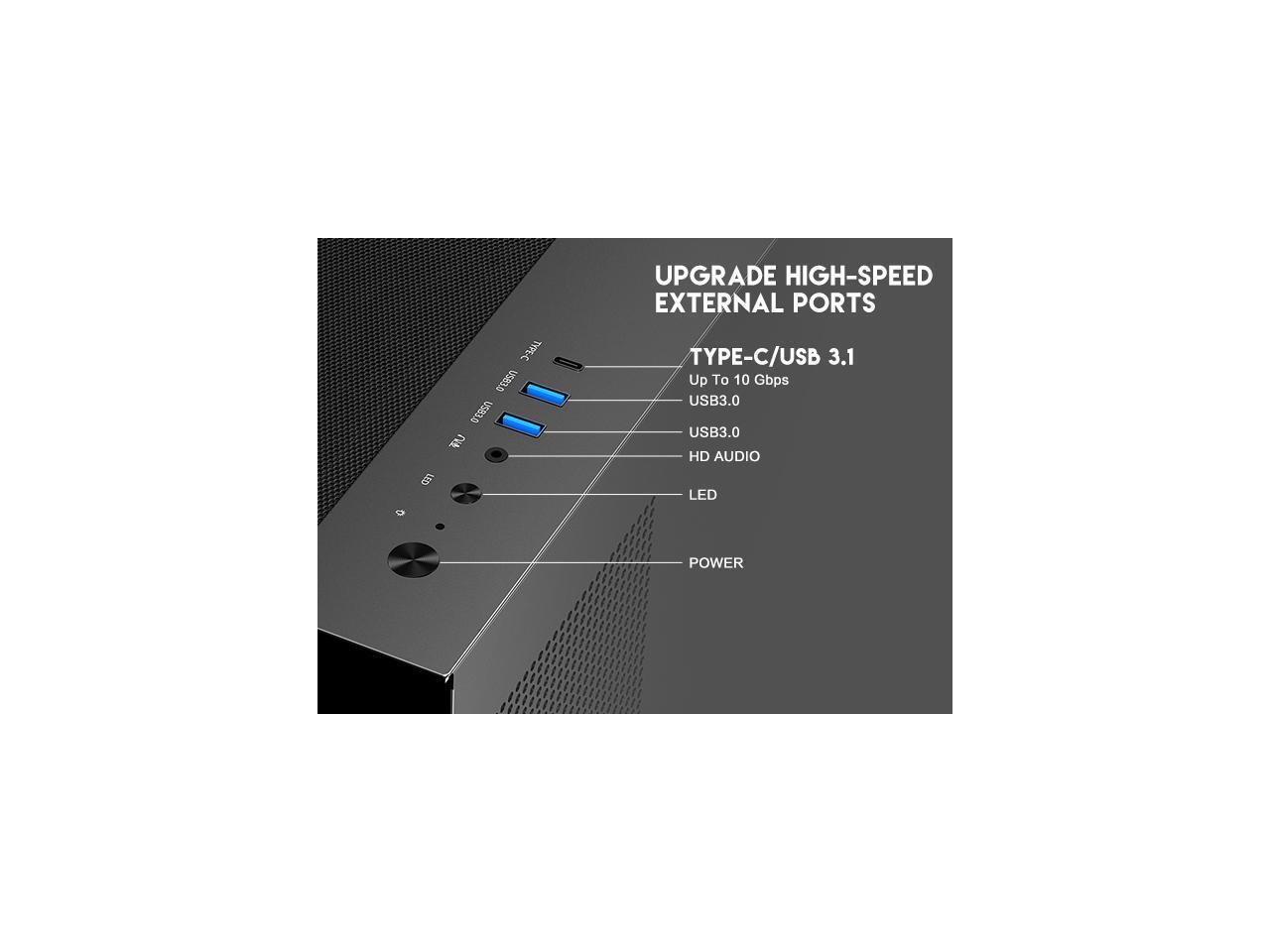

| Front Ports | 2 x USB 3.0 / 1 x Type C / Audio In & Out (HD) |
|---|
Cooling System

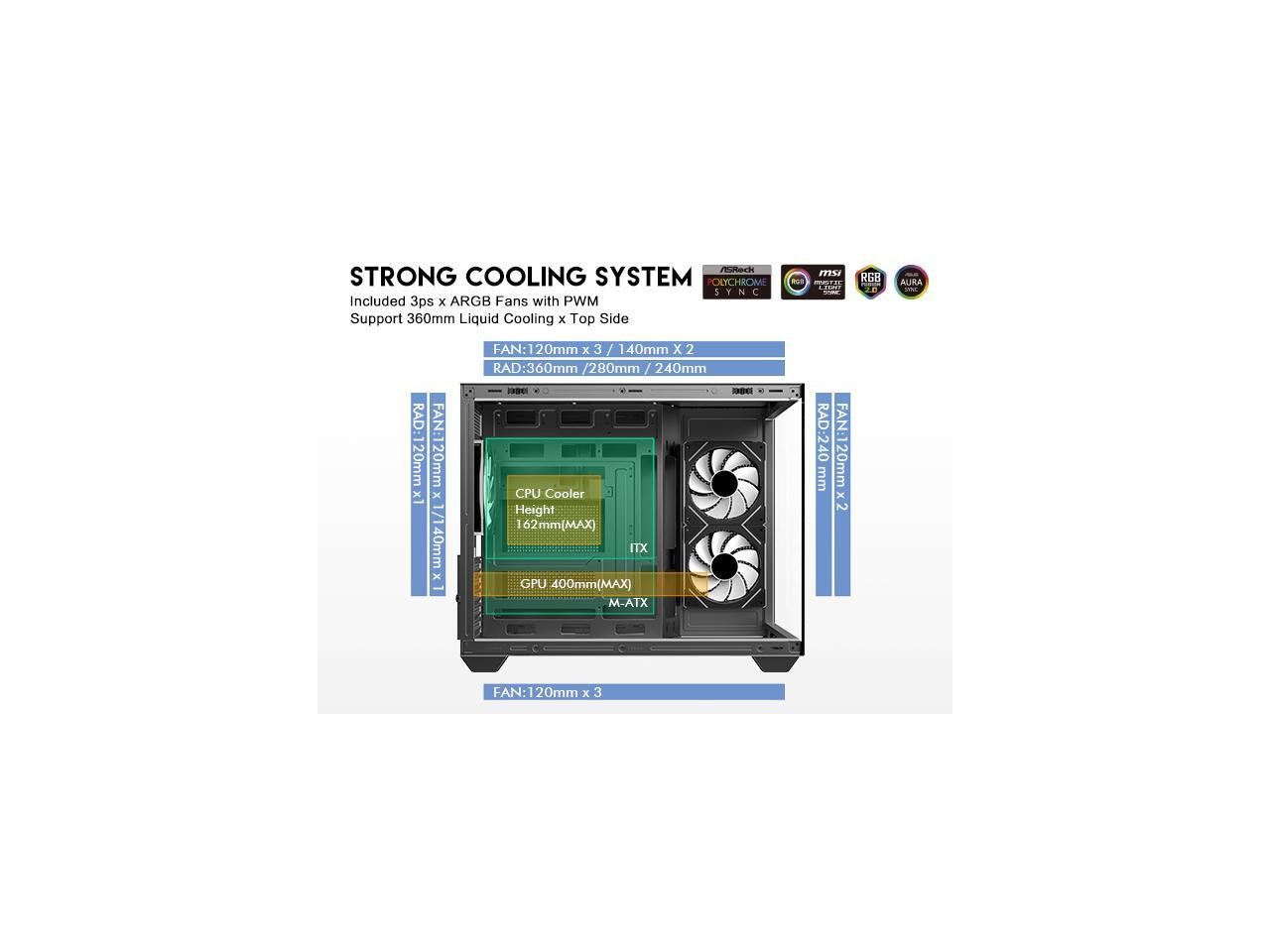

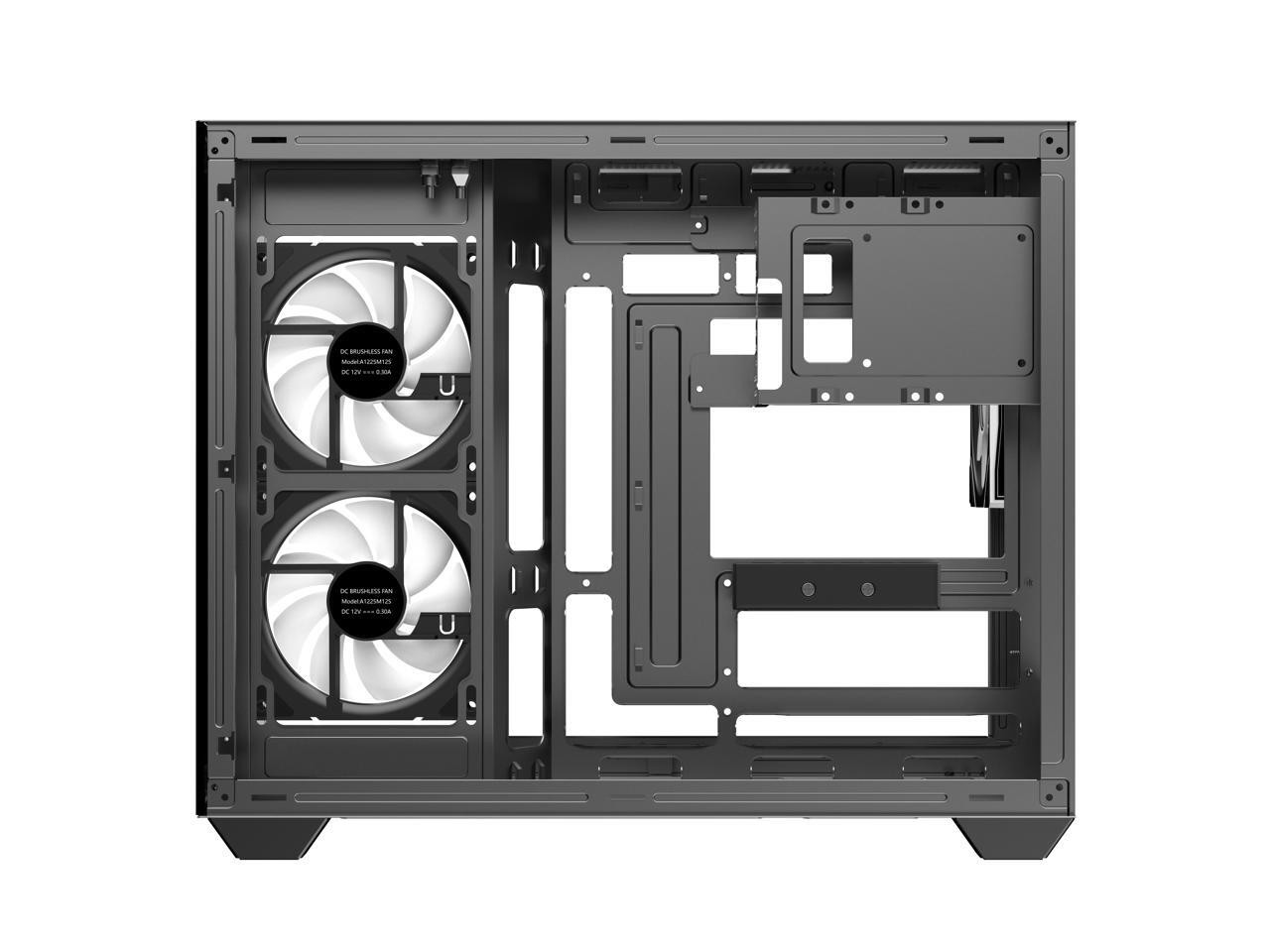

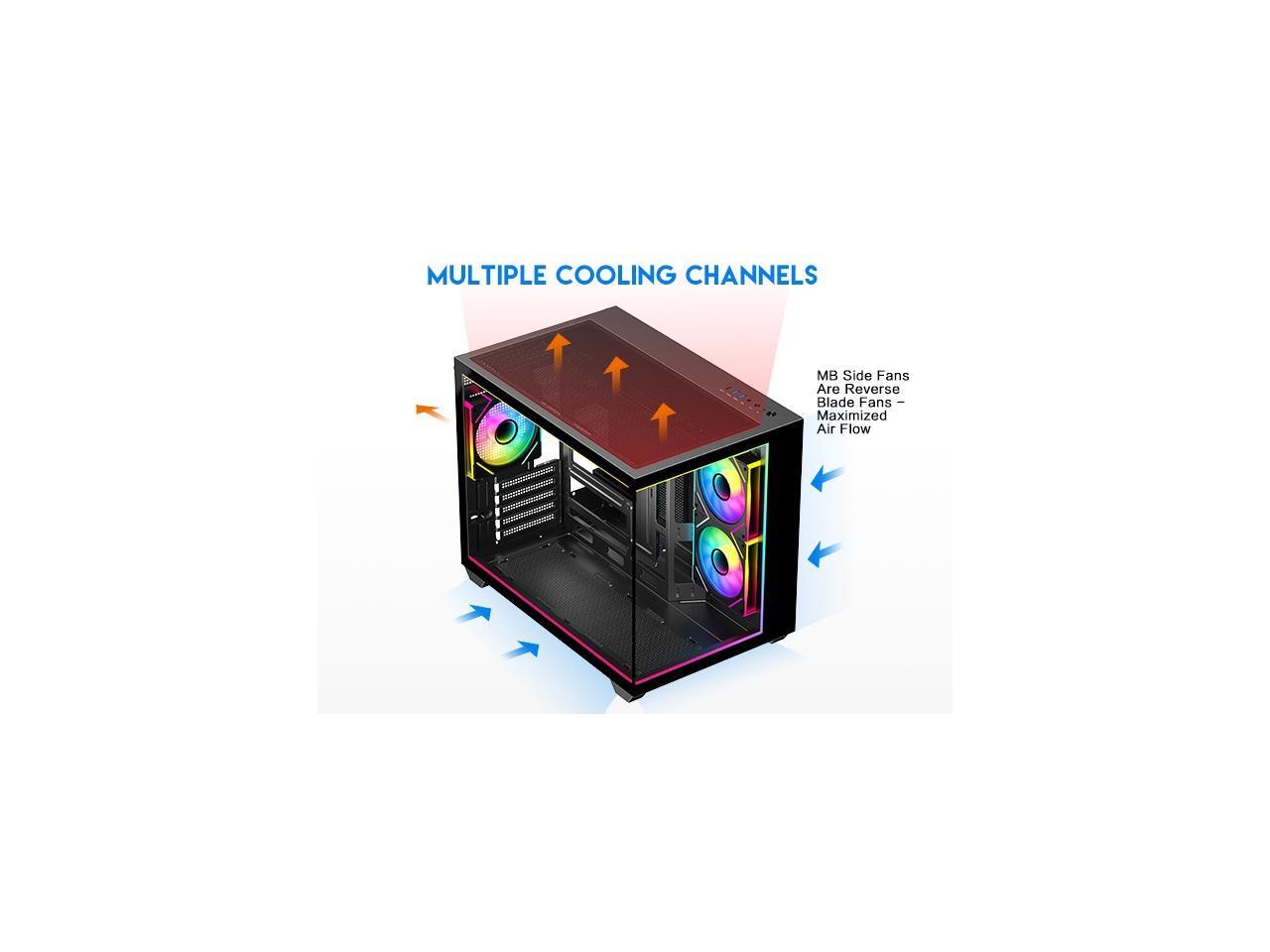

| Fan Options | Top: 3 x 120mm or 2 x 140mm fan (Optional) MB Side: 2 x 120mm ARGB Reverse Blade PWM Fan (pre-installed) Rear: 1 x 120mm ARGB PWM Fan (pre-installed) bottom : 3 x 120mm fan (Optional) |
|---|---|
| Radiator Options | Top support up to 360mm, MB support 240mm liquid cooler |
Dimensions & Weight
| Max GPU Length | 400 mm |
|---|---|
| Max CPU Cooler Height | 162 mm |
| Max PSU Length | 180 mm |

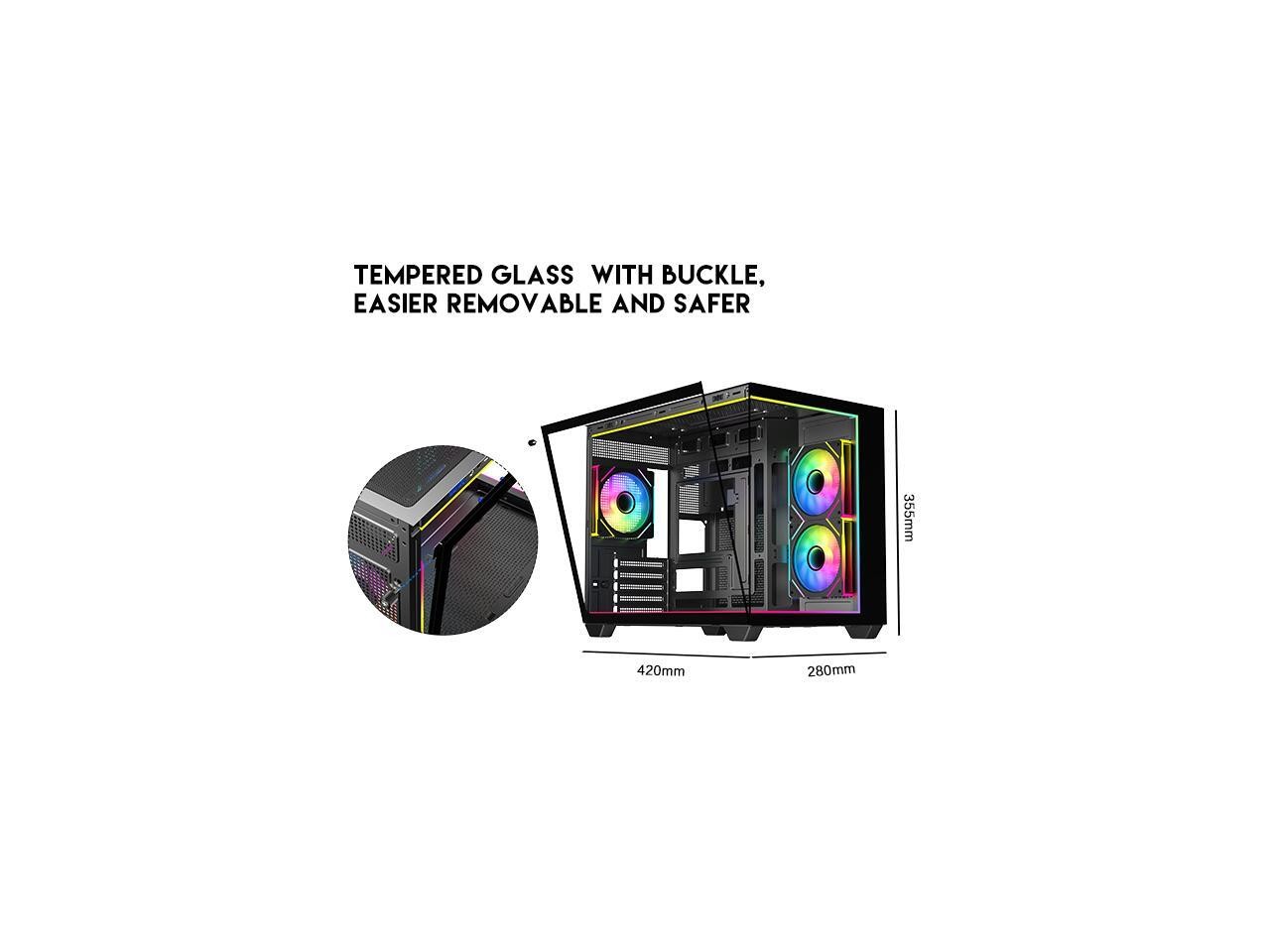

| Dimensions | 16.7" x 11" x 14.2" |
| Weight | 10lbs |
Additional Info

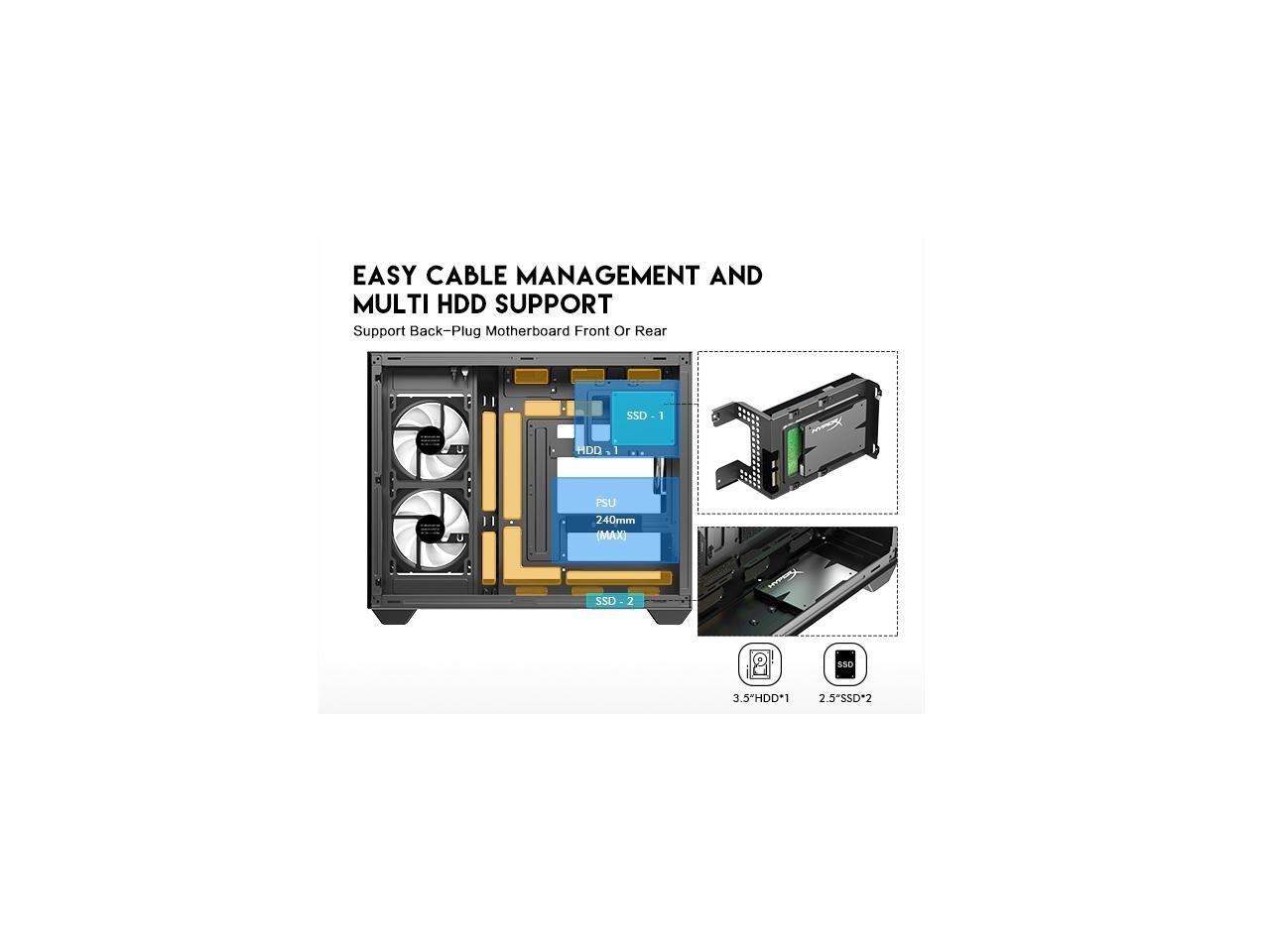

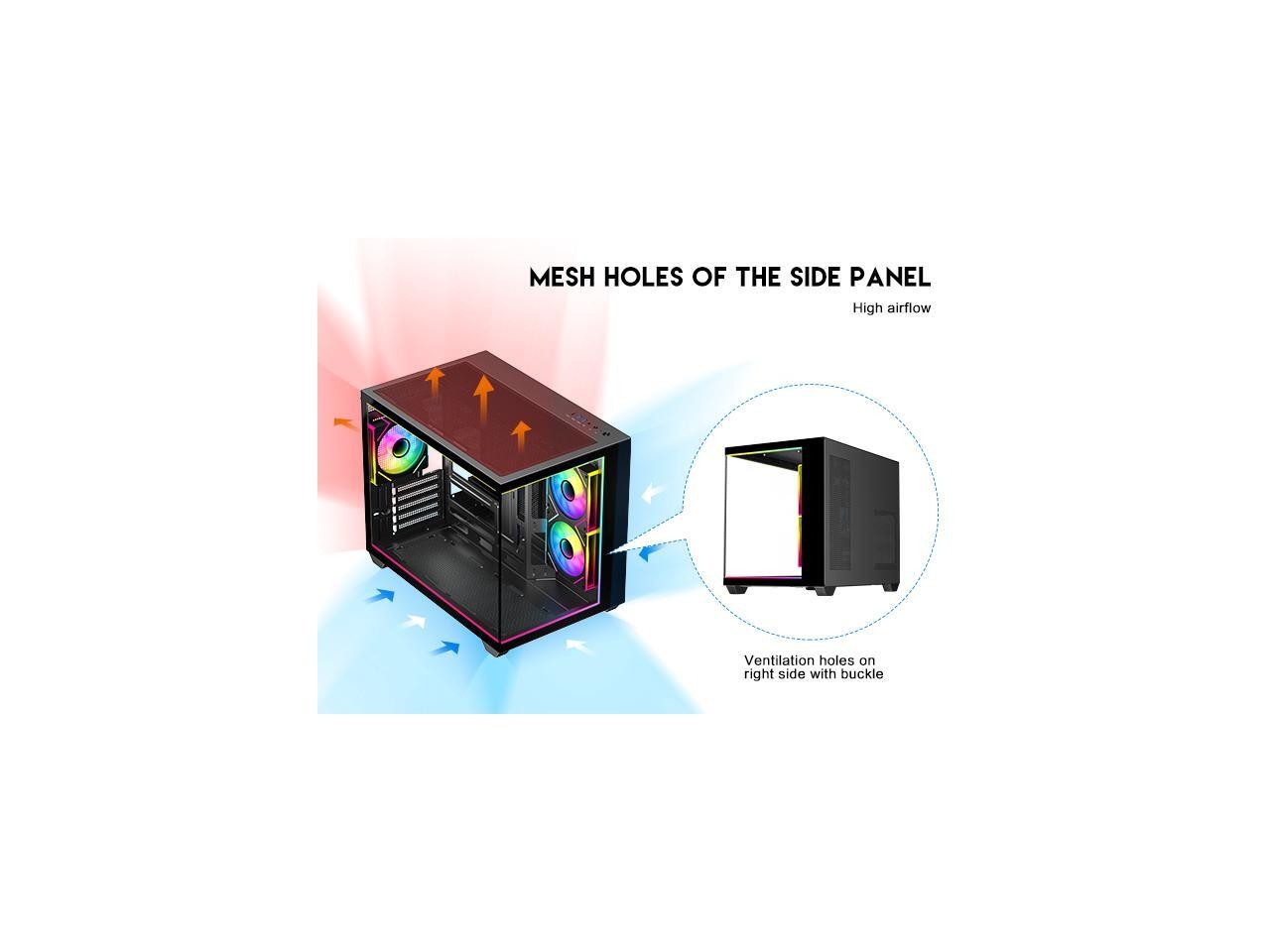

| Features | DIYPC IDX4-MicroATX-ARGB. It has front and side tempered glass panel, w/top mesh design allow optimized air flow. The case design has bigger interior space to accommodate and improve cooling performance (can support up to 400mm x GPU and 360mm radiator x top). Advanced cable management design - routing the main cable is easy and quick through a hidden channel. There is a large space behind the motherboard for all cables, making the case a clean and beautiful look. 2 ways to control ARGB Fan Lighting: Either by Manual ARGB LED Button on Top I/O Panel; or if your motherboard has 5v addressable connector, this case has ARGB 5V/3 pin header ready to SYNC w/your motherboard to control RGB lighting. ARGB HUB controller with PWM is included. Water cooling ready - Top support up to 360mm, MB support 240mm liquid cooler. Advanced bottom-mounted power supply design Top mounted IO ports - 2 x USB 2.0 / 1 x Type C for up-to-date high speed data transfer 9 fans capability -2 x 120mm ARGB reverse blade PWM fan x MB side, 1 x 120mm ARGB PWM fan x rear(pre-installed) provide great cooling and gaming performance Magnetic dust filter at top/side - easy clean Support up to 162mm CPU cooler Support up to 400mm VGA card |
|---|
