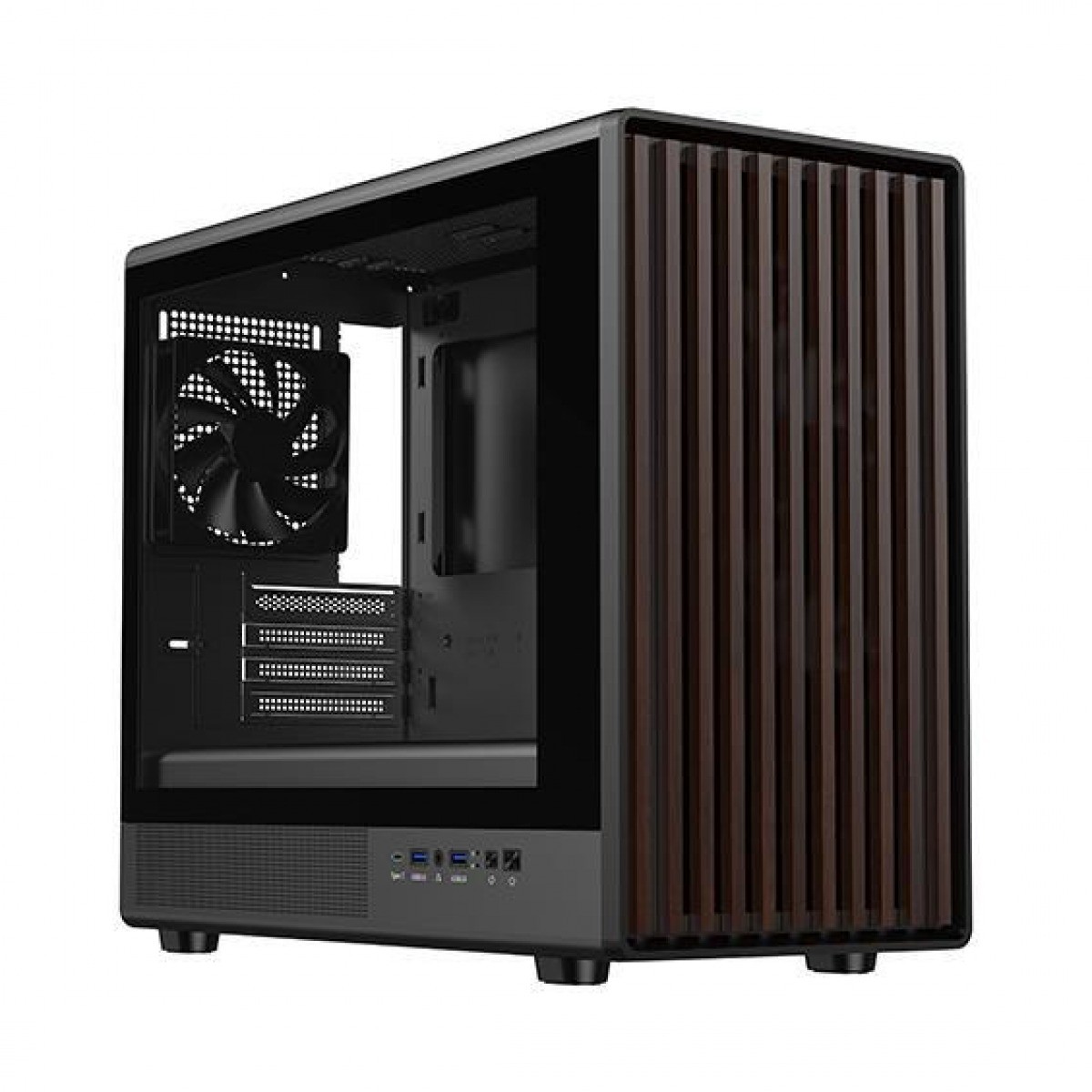

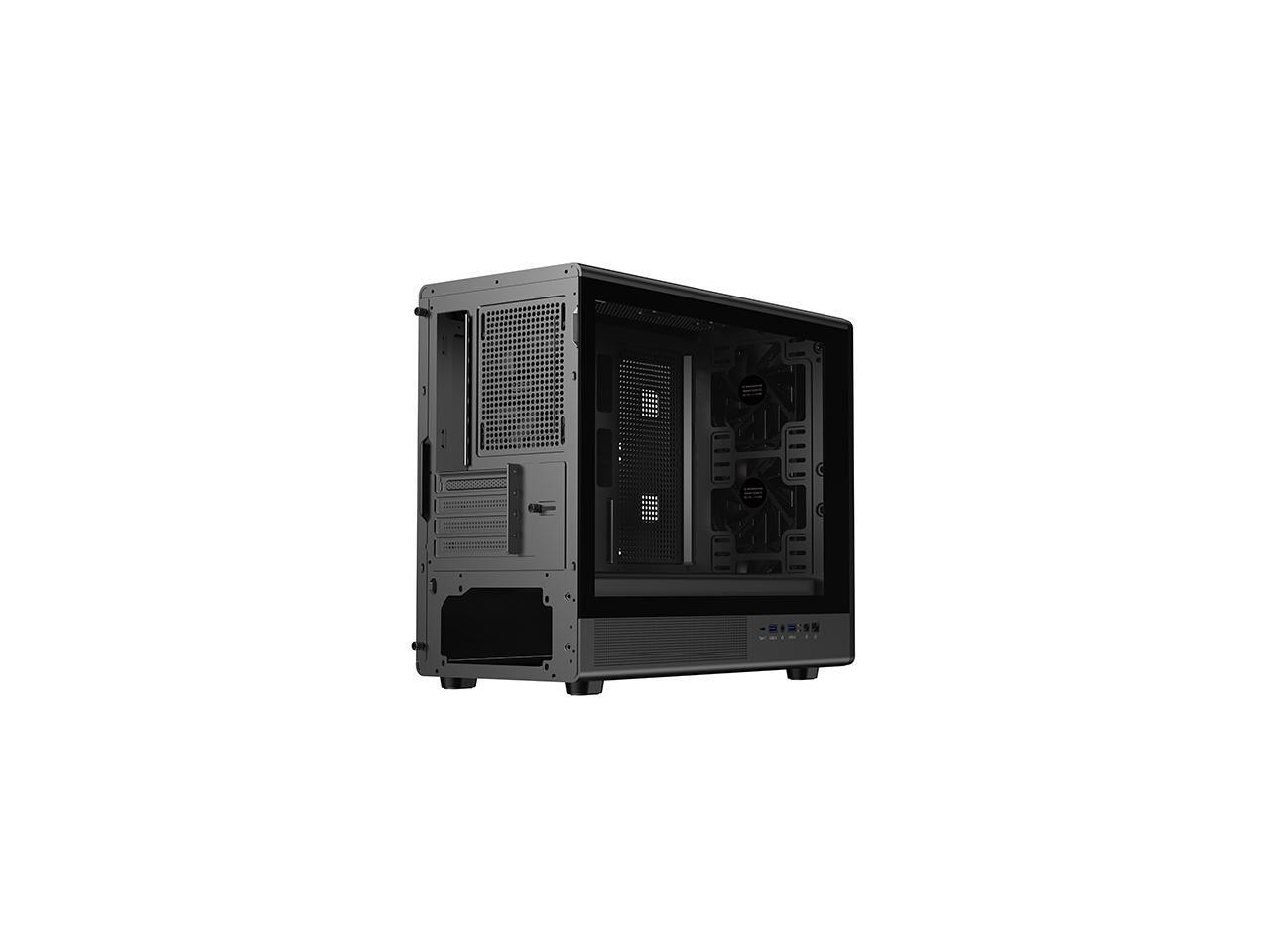

DIYPC DIY-mATX06-Wood Black USB3.0 / Type C Micro ATX Tower Gaming Computer Case w/ Tempered Glass Side Panel and Walnut Wood Front Panel

More Views

DIYPC DIY-mATX06-Wood Black USB3.0 / Type C Micro ATX Tower Gaming Computer Case w/ Tempered Glass Side Panel and Walnut Wood Front Panel

Be the first to review this product

$99.99

Availability: In stock

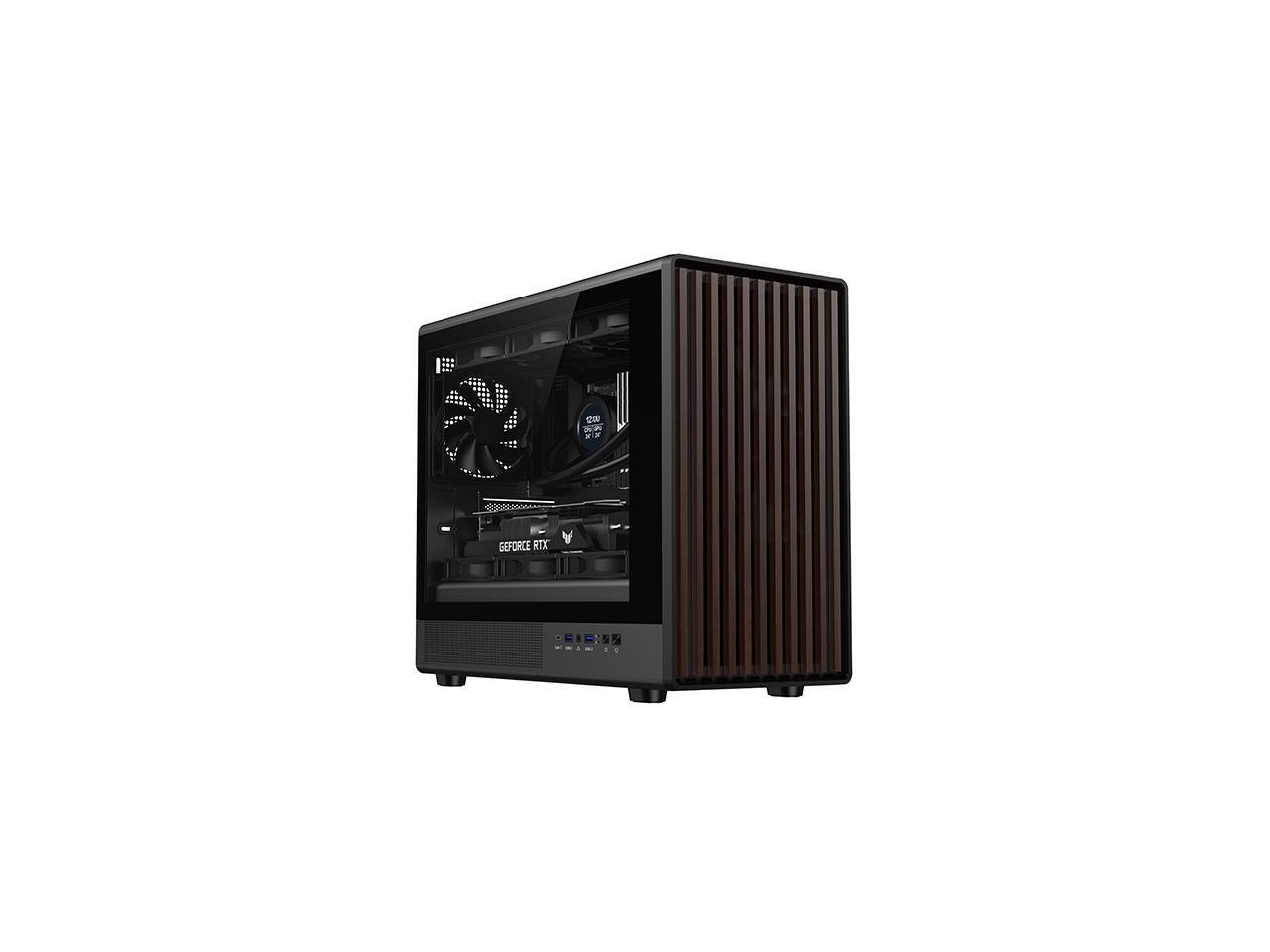

  • Walnut wood front panel combined with a tempered glass side panel for a clean modern build style.
  • Designed for compact Micro ATX and Mini ITX gaming systems.
  • USB 3.0 and Type-C front I/O provide convenient high-speed connectivity.
  • Optimized internal layout supports strong airflow and tidy cable routing.
  • Magnetic dust filters help simplify routine maintenance.

Description

Details

DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case
DIYPC DIY-mATX06-Wood Gaming Computer Case

Specifications

Best Seller Ranking #13 in <a href=https://www.newegg.com/d/Best-Sellers/Computer-Cases/s/ID-7 onclick="Biz.Common.SiteCatalyst.sendForOnClick({events: 'event63',eVar78: 'product-best seller ranking:Computer Cases',eVar79: 'product-best seller ranking:Computer Cases',}, 'specs bestsellingranking click')" class="link-text">Computer Cases</a>

Model

Brand DIYPC
Model DIY-mATX06-Wood

Details

Type Micro ATX Tower
Color Black
Case Material Steel / Tempered Glass
With Power Supply No
Power Supply Mounted Bottom
Motherboard Compatibility ITX / Micro ATX

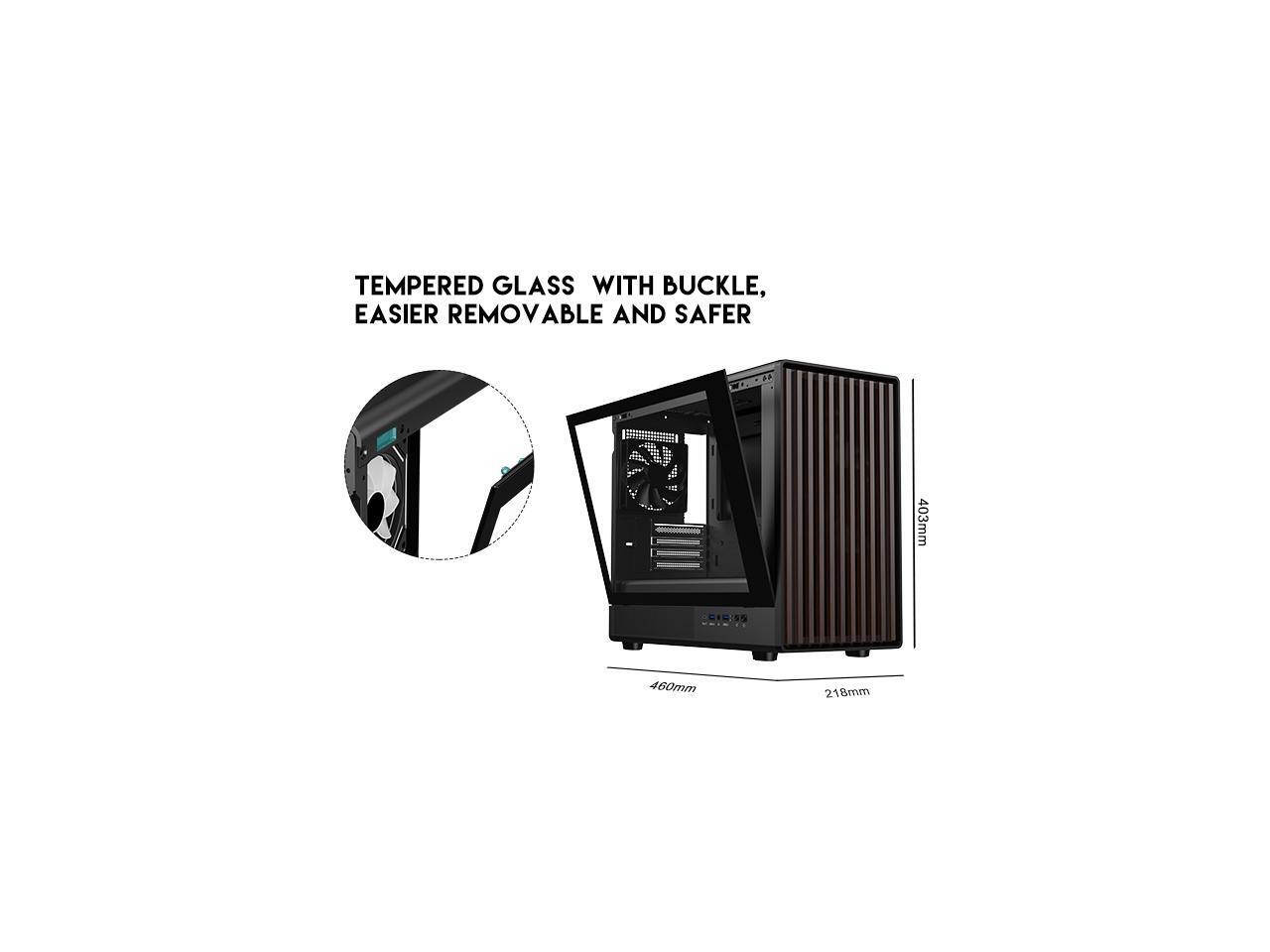

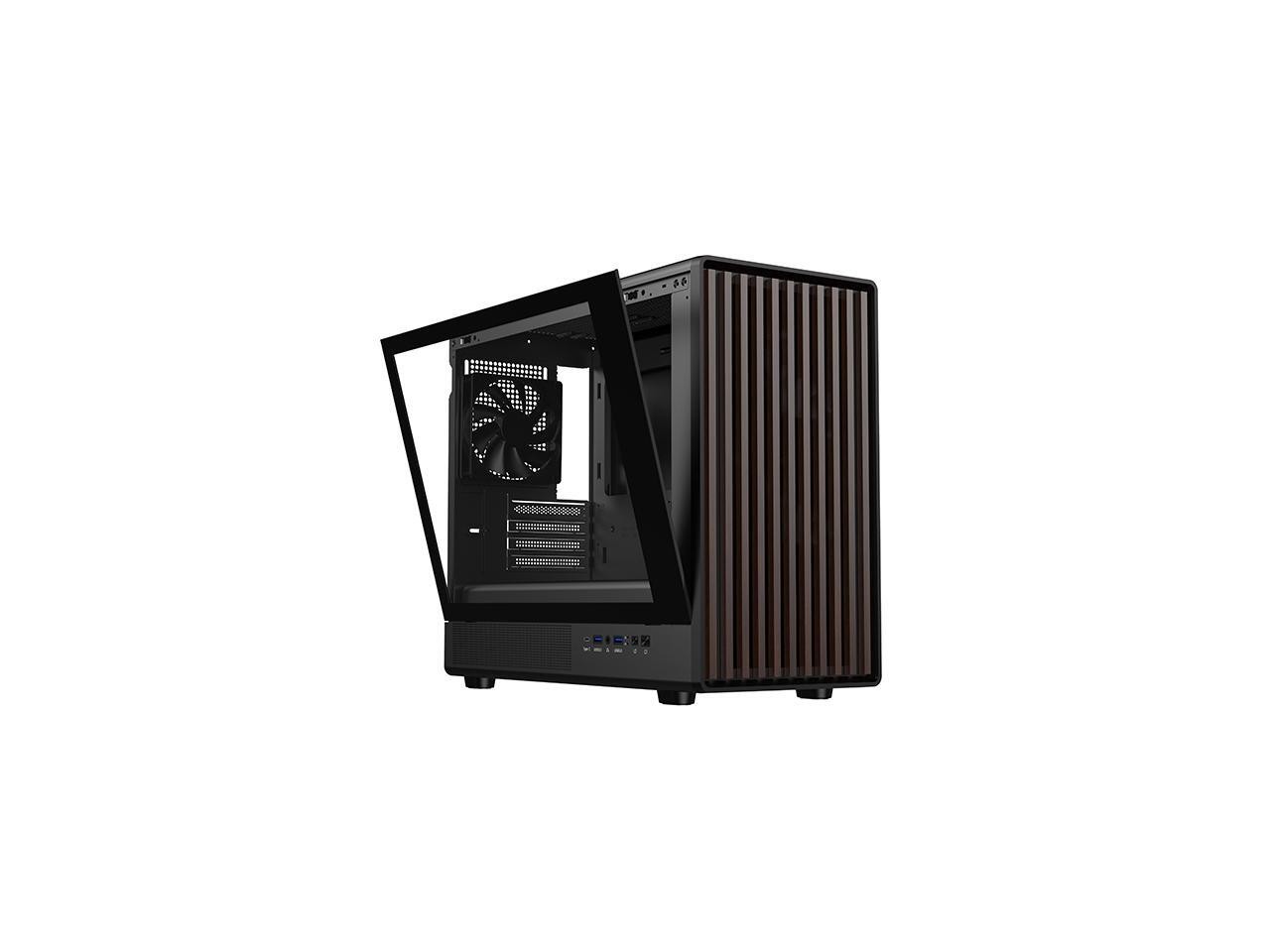

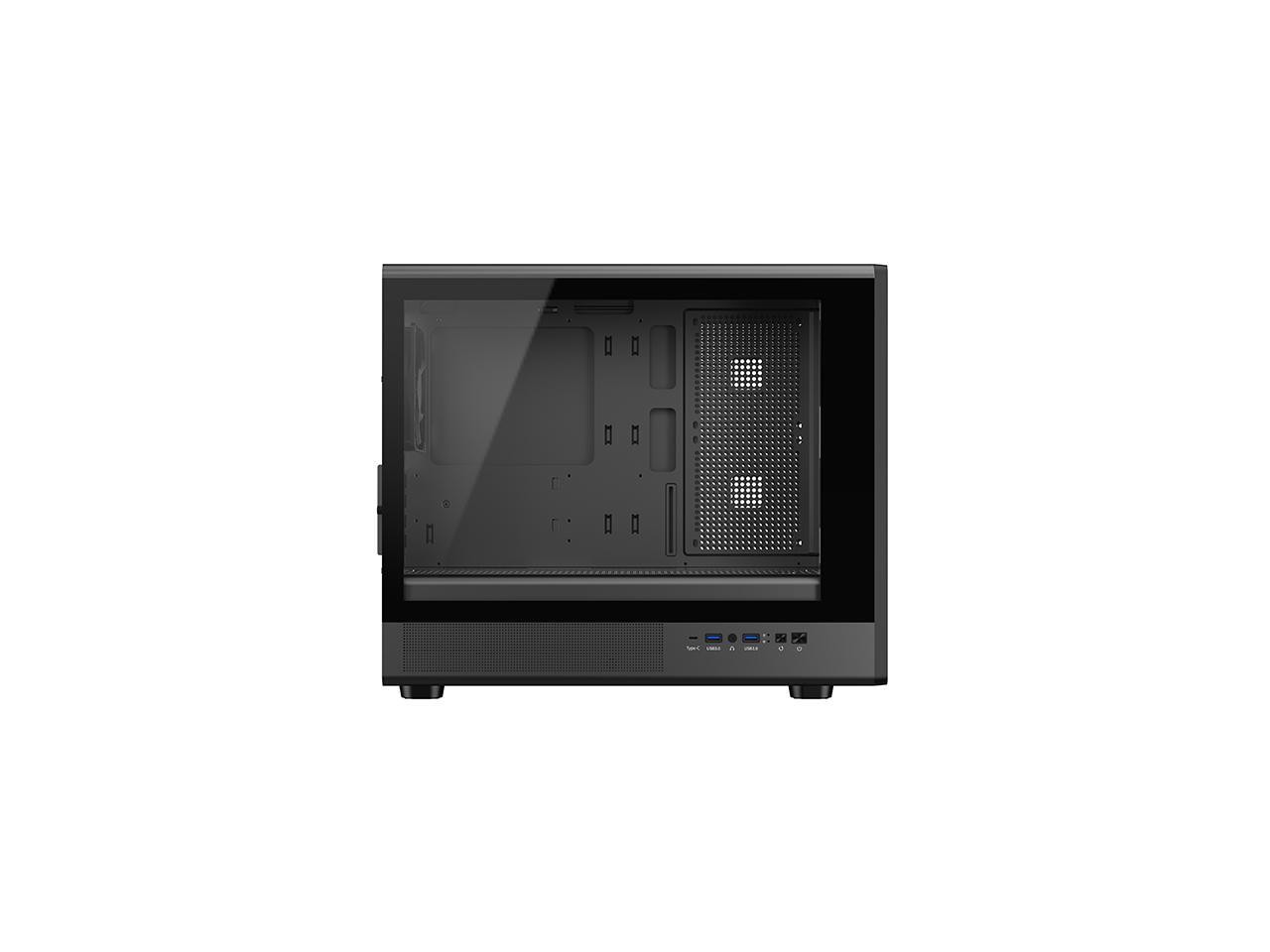

Side Panel 1 x Side Tempered Glass Panel

Expansion

Internal 3.5&quot; Drive Bays 2
Internal 2.5&quot; Drive Bays 1
Expansion Slots 4

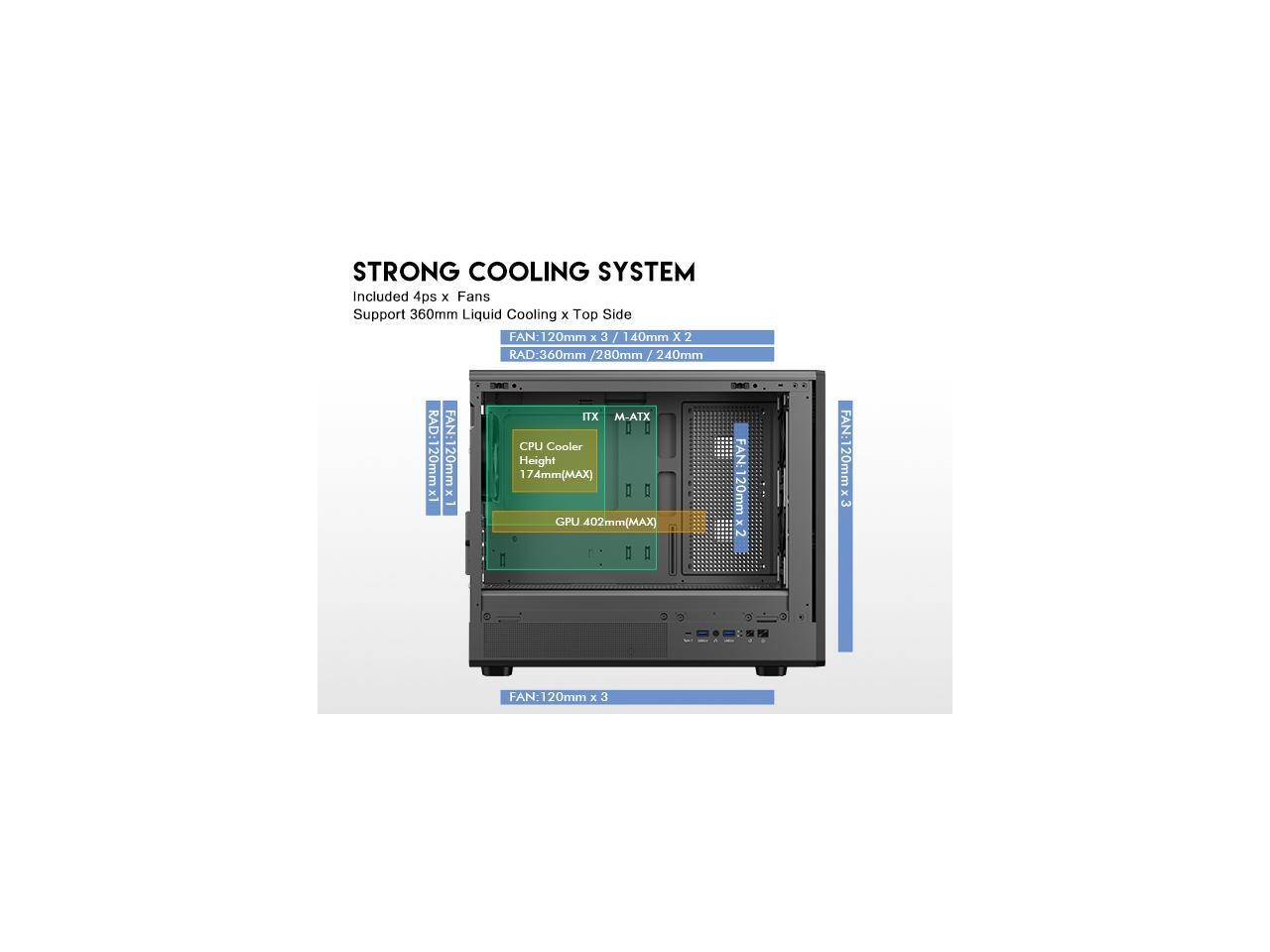

Cooling System

Fan Options Front: 3 x 120mm Black PWM Fan (Pre-Installed)

Top: 3 x 120mm or 2 x 140mm fan (Optional)

Rear: 1 x 120mm Black PWM Fan (Pre-Installed)
Pre-installed Fans Front - 3 x 120mm / Rear - 1 x 120mm
Radiator Options Top - Up to 360mm

Dimensions &amp; Weight

Max GPU Length 402 mm
Max CPU Cooler Height 174 mm
Max PSU Length 240 mm

Additional Info

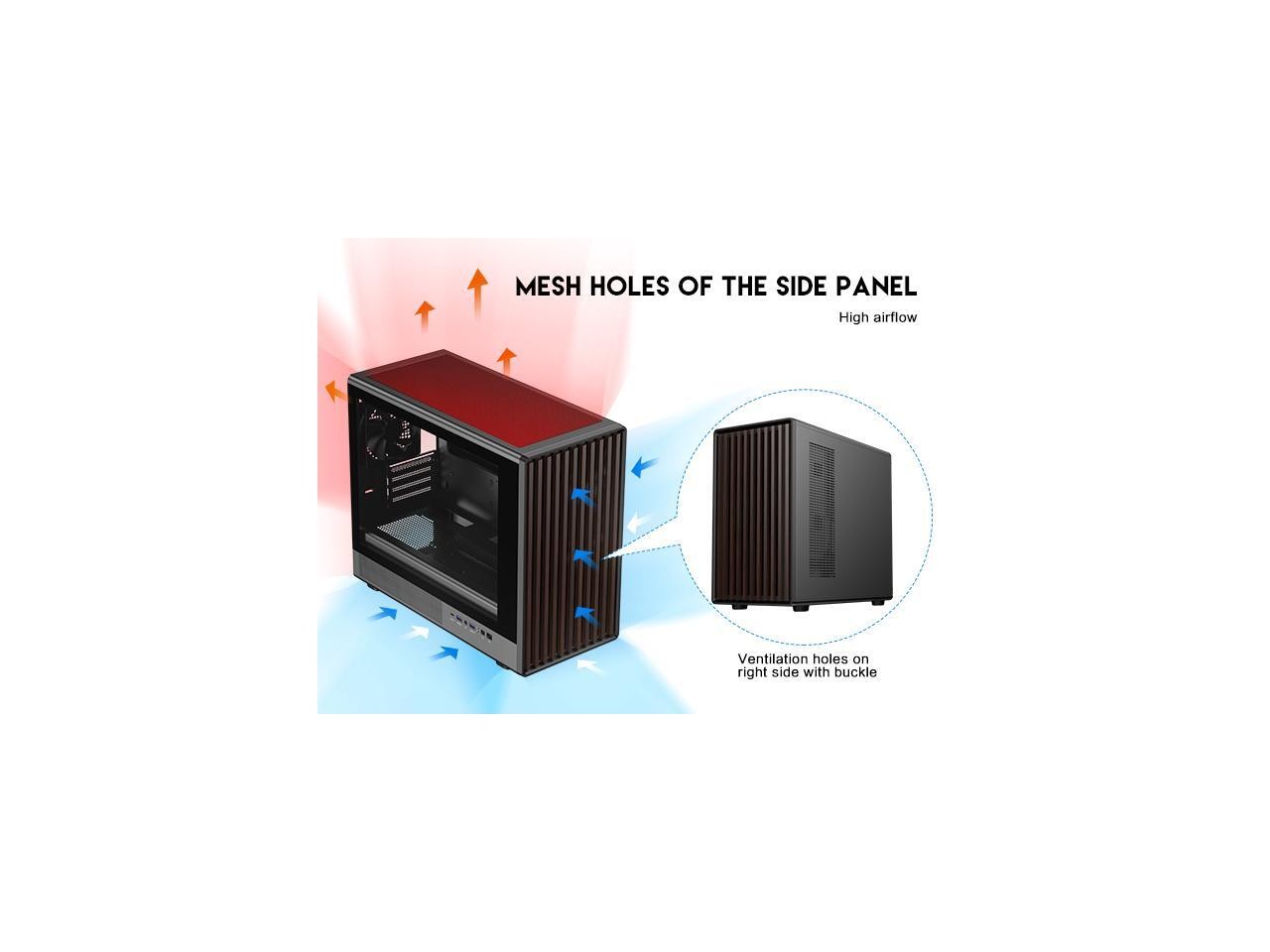

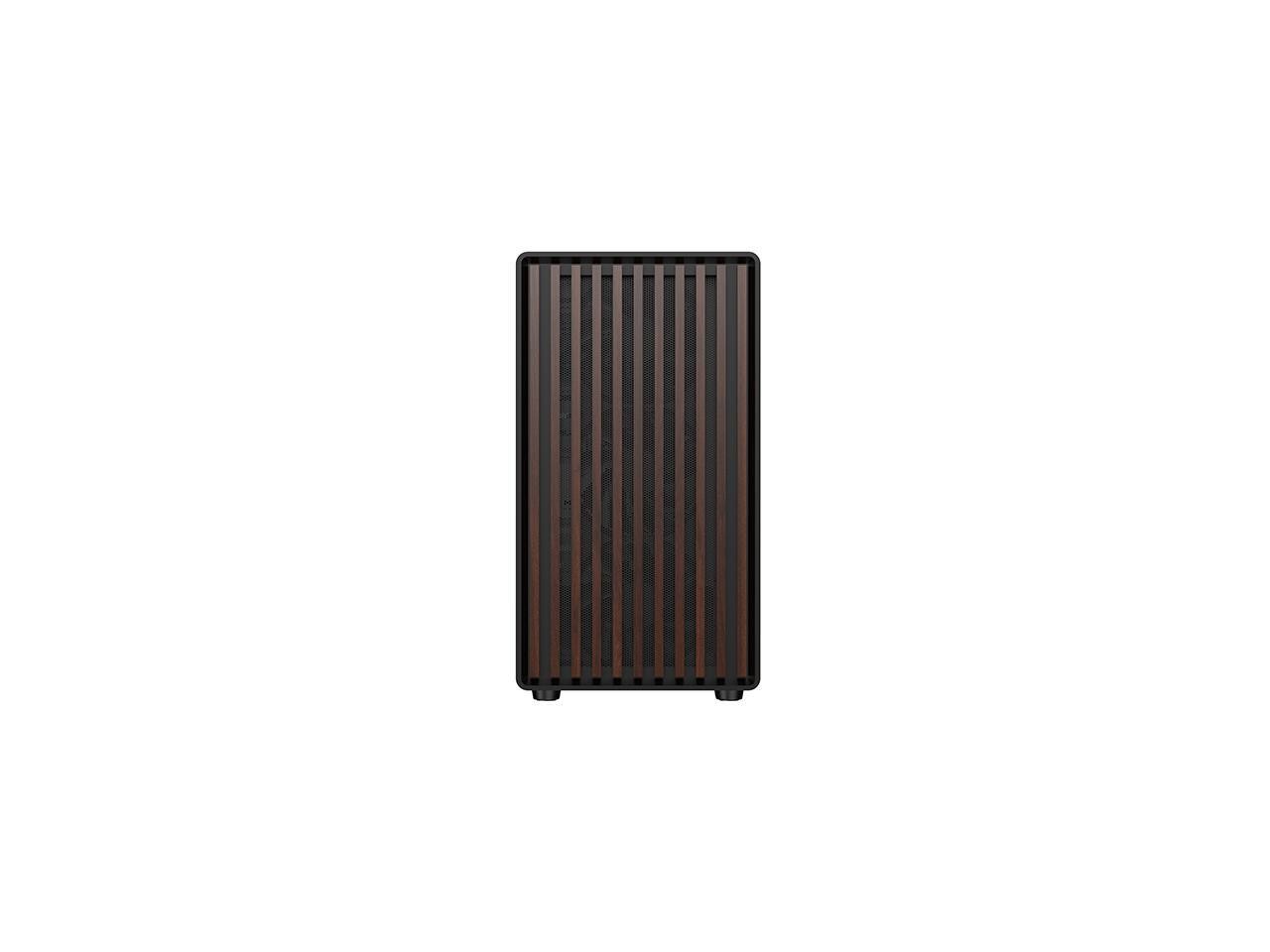

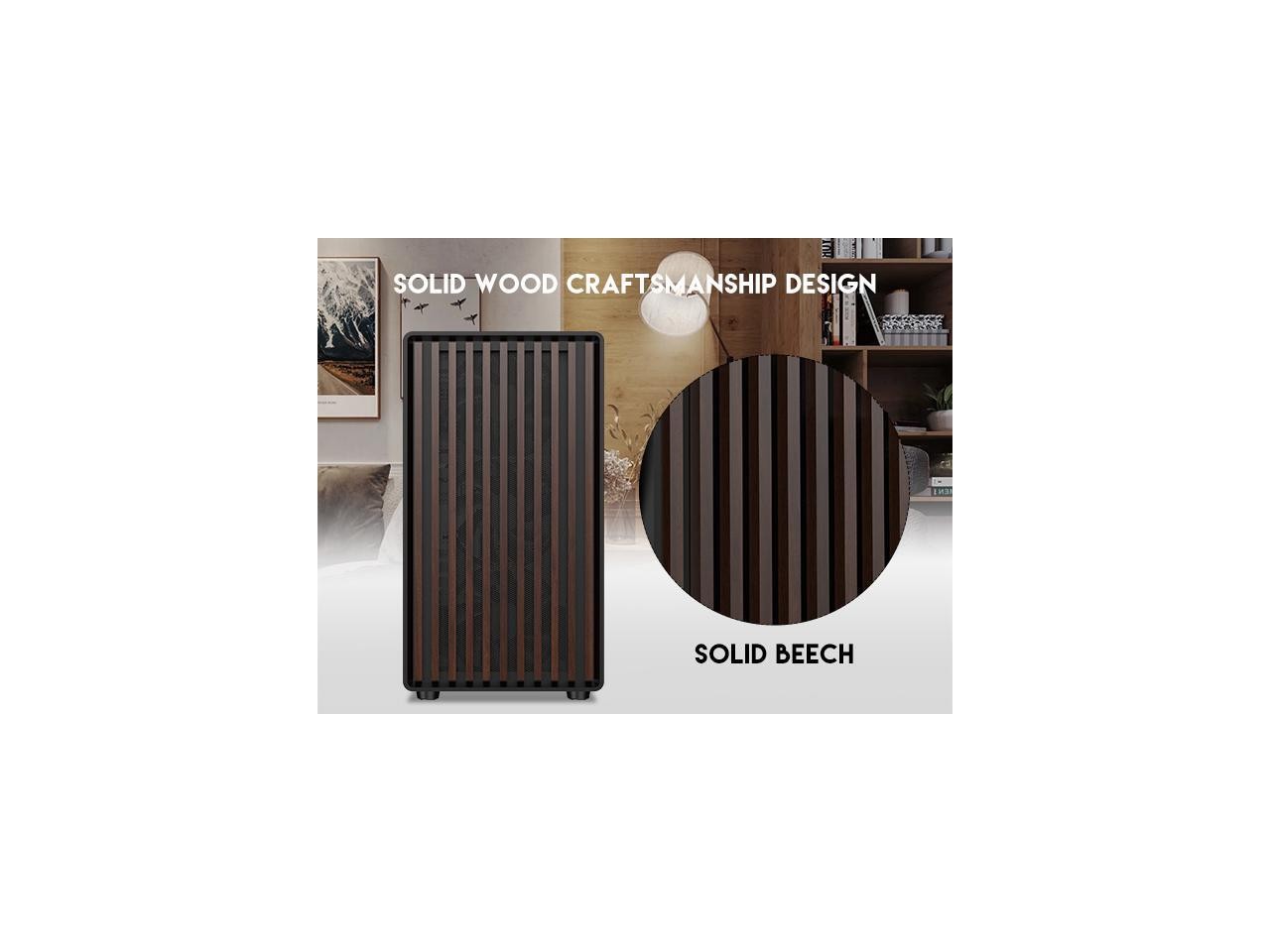

Features DIY-mATX06-Wood front panel is crafted with high quality walnut wood. The natural and elegant wood element is perfectly integrated into the modern workspace. It has side tempered glass panel, w/top mesh design allows optimized air flow. Crafted from steel, tempered glass and wood to blend into any home design. The DIY-mATX06-Wood has bigger interior space to accommodate and improve cooling performance (can support up to 402mm x GPU and 360mm radiator x top). It supports up to 240mm long full ATX power supply to run the most power hungry system.

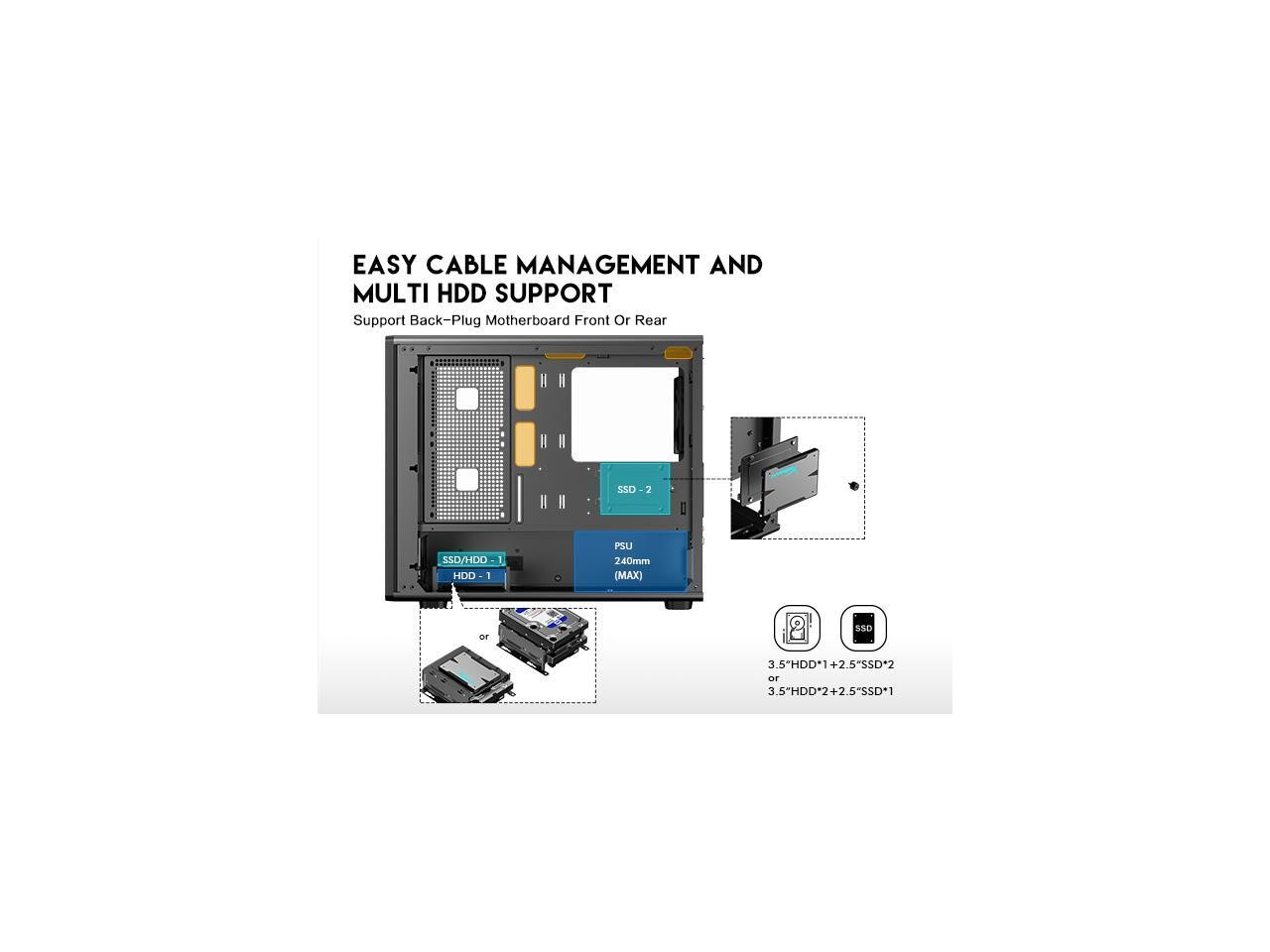

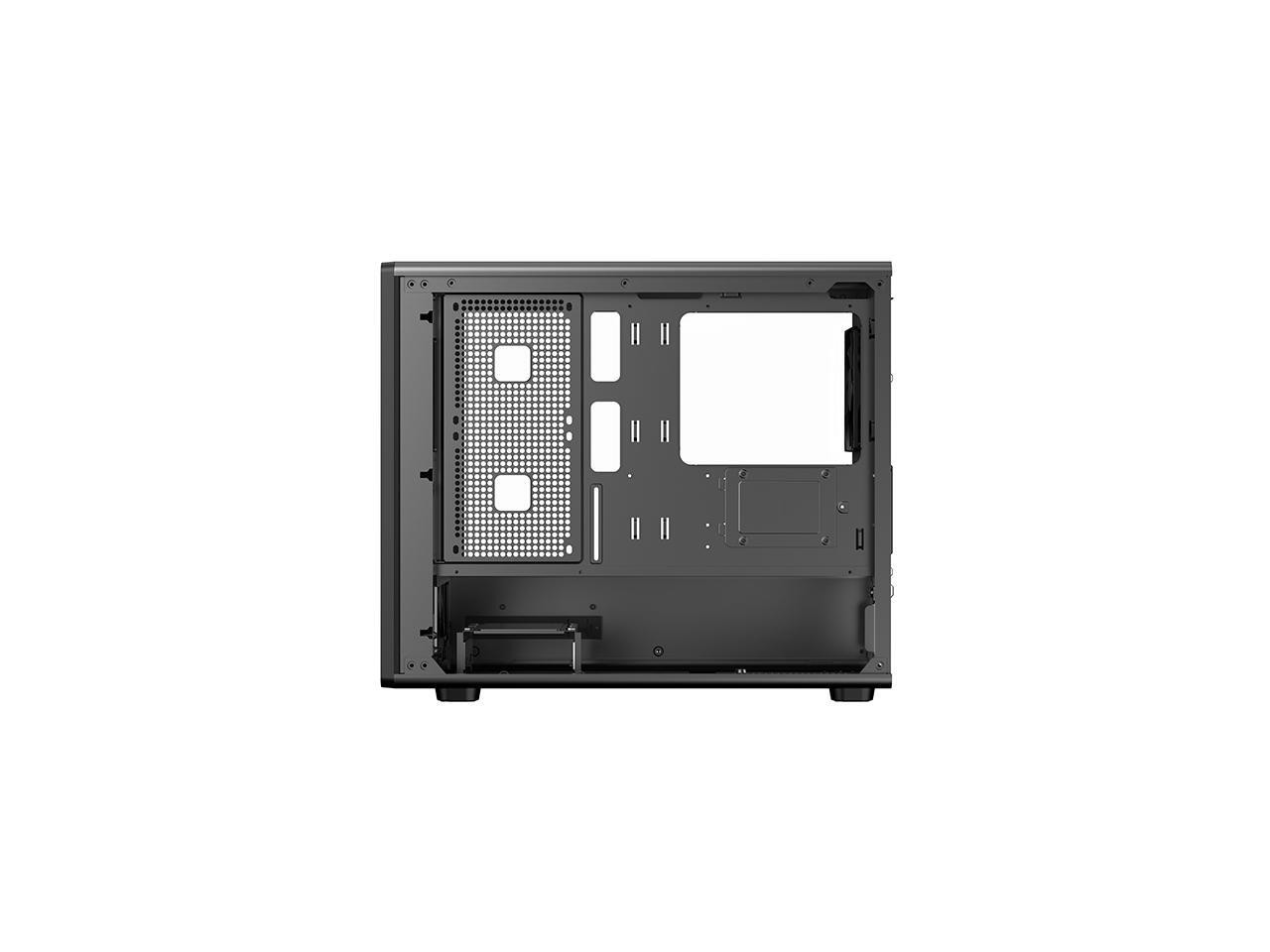

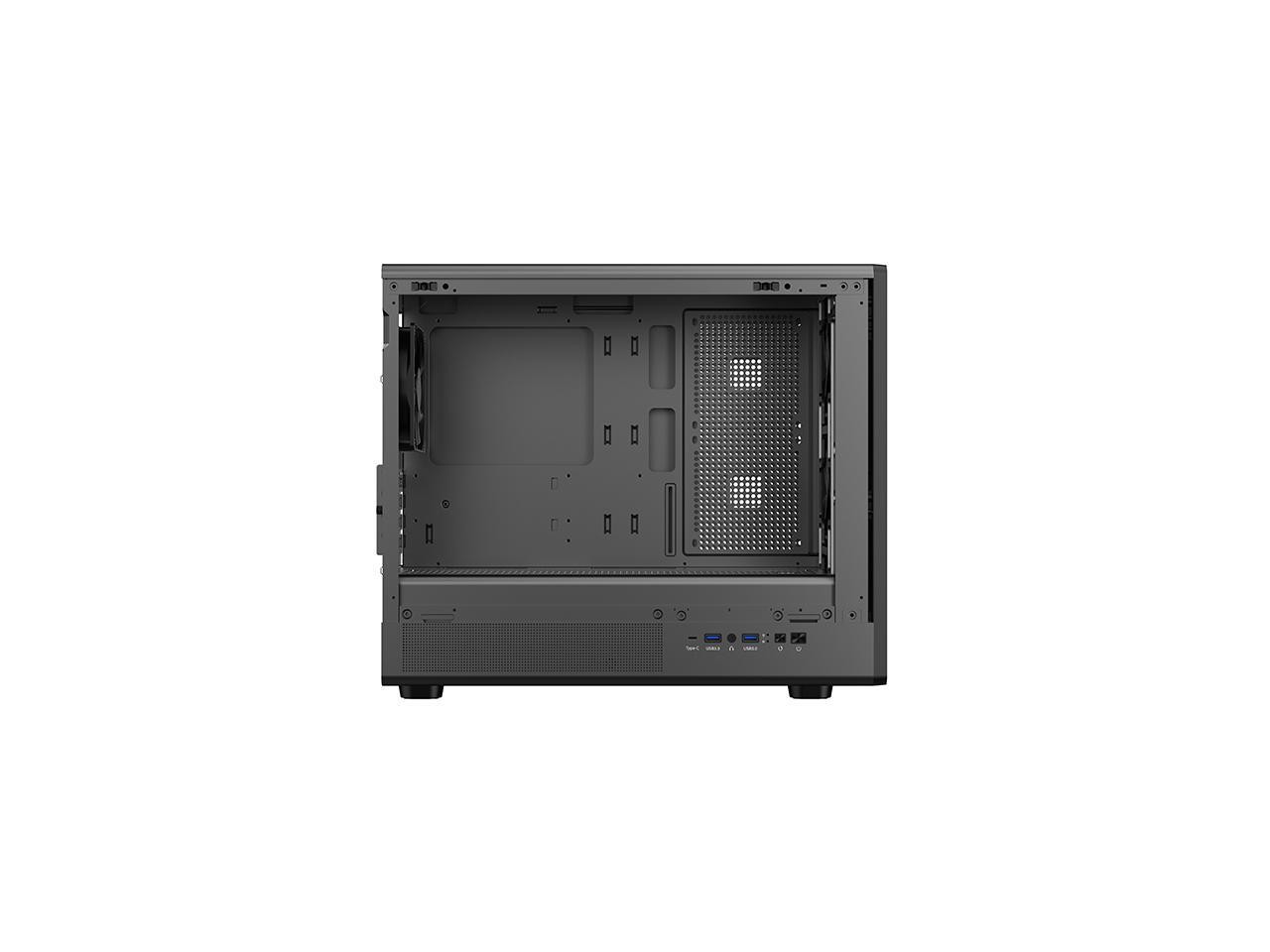

Advanced cable management design - routing the main cable is easy and quick through a hidden channel. There is a large space behind the motherboard for all cables, making the case a clean and beautiful look.

Water cooling ready - Top support up to 360mm radiator

Advanced bottom-mounted power supply design

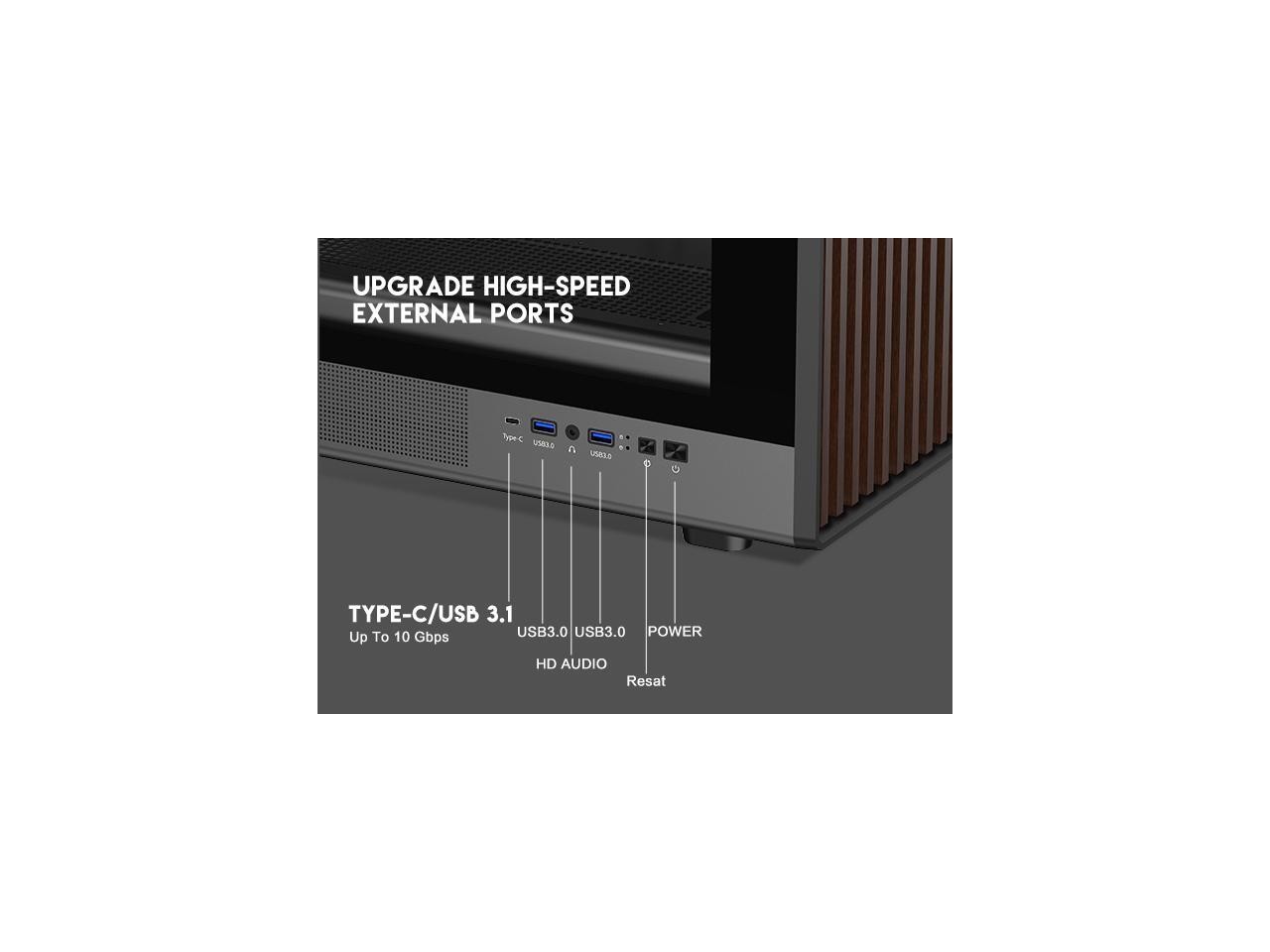

Top mounted IO ports - Dual USB 3.0 /Type C x 1 for up-to-date high speed data transfer

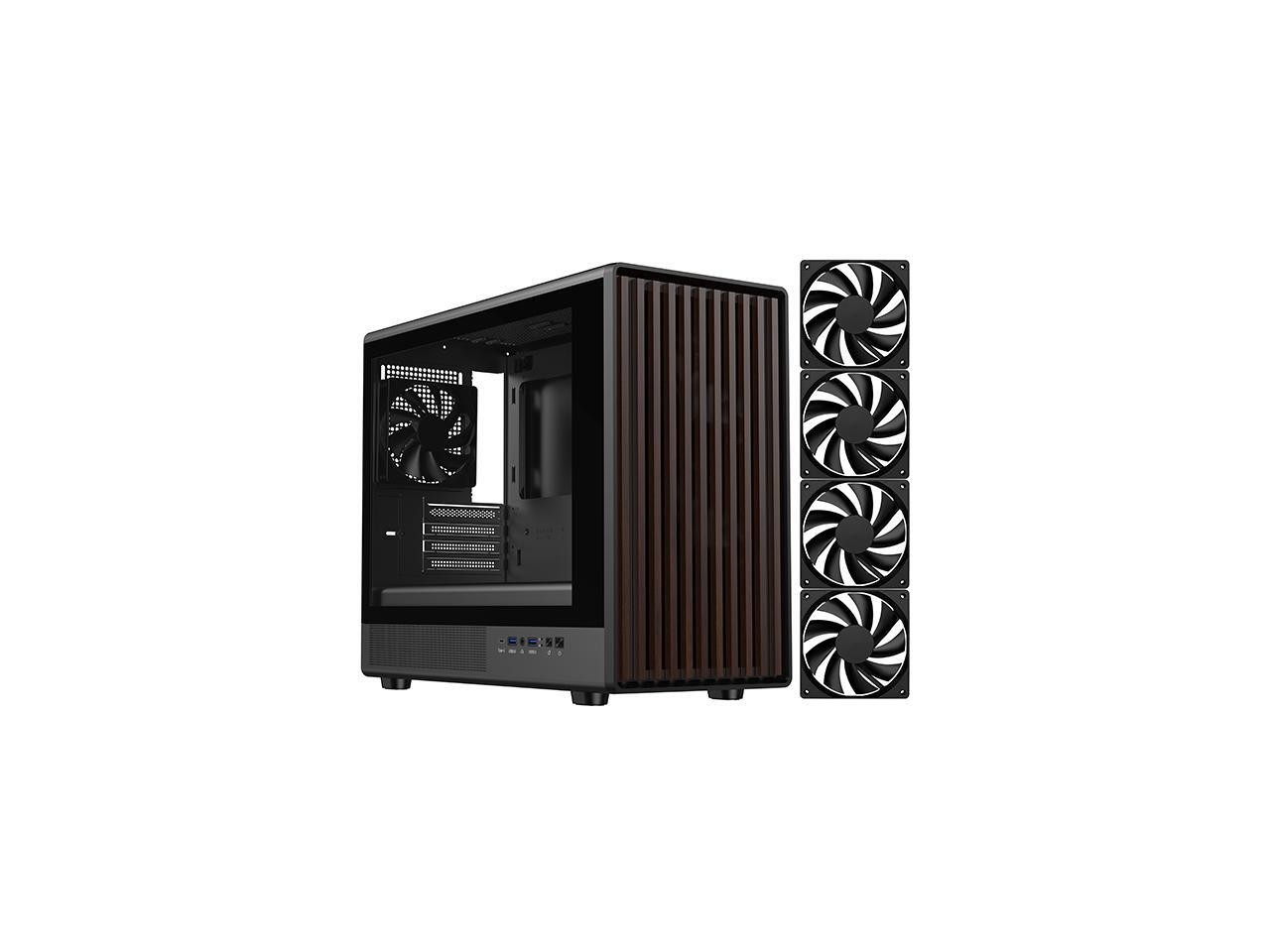

7 fans capability - 3 x 120mm black PWM Fan x front and 1 x 120mm black PWM fan x rear (Pre-Installed) provide great cooling and gaming performance

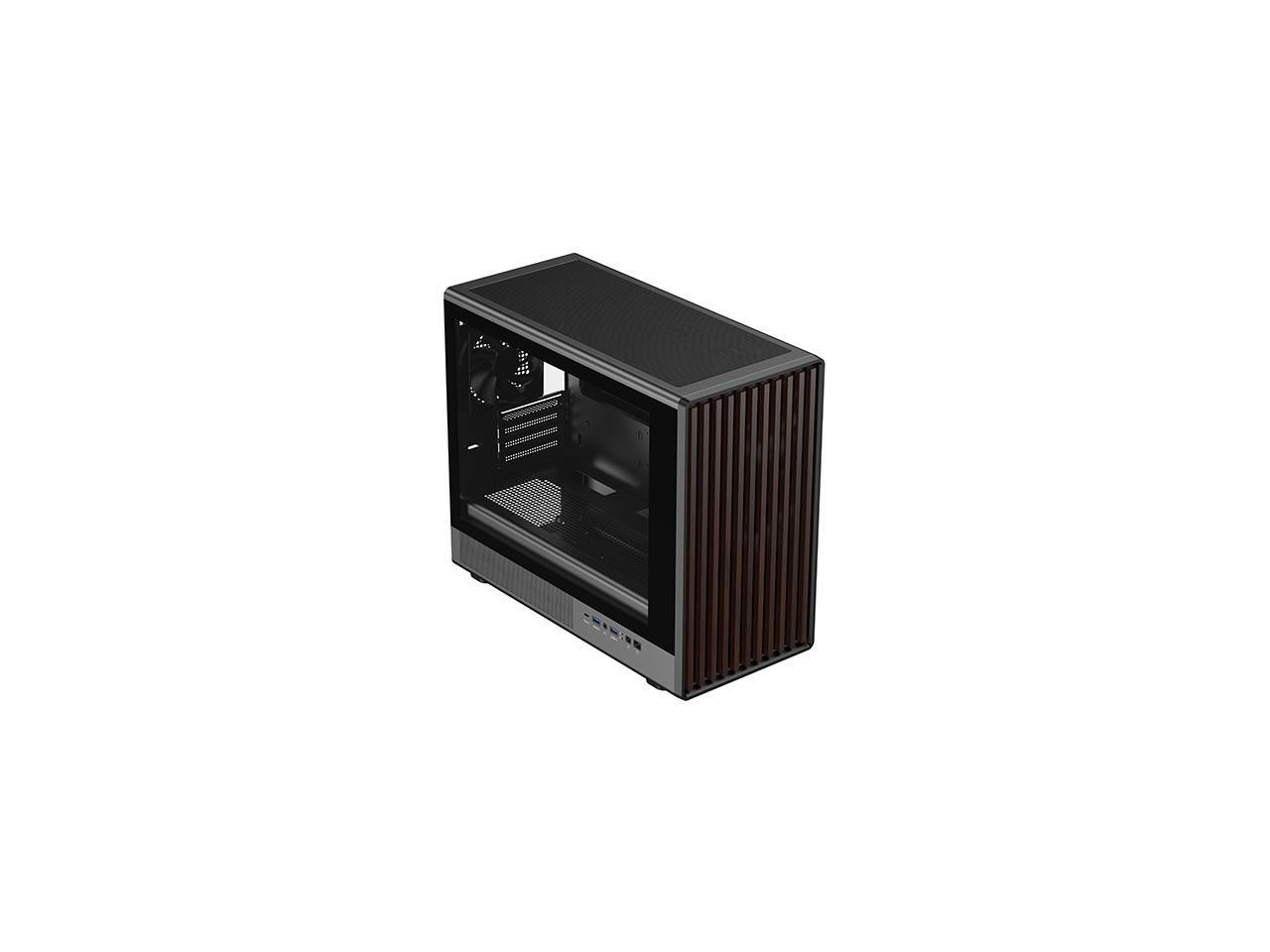

Magnetic dust filter at top - easy clean

Support up to 174mm CPU cooler

Support up to 402mm VGA card

Additional Information

First Listed on Newegg May 30, 2025

User Manual

Download DIY-mATX06-Wood User Manual
