Super performance

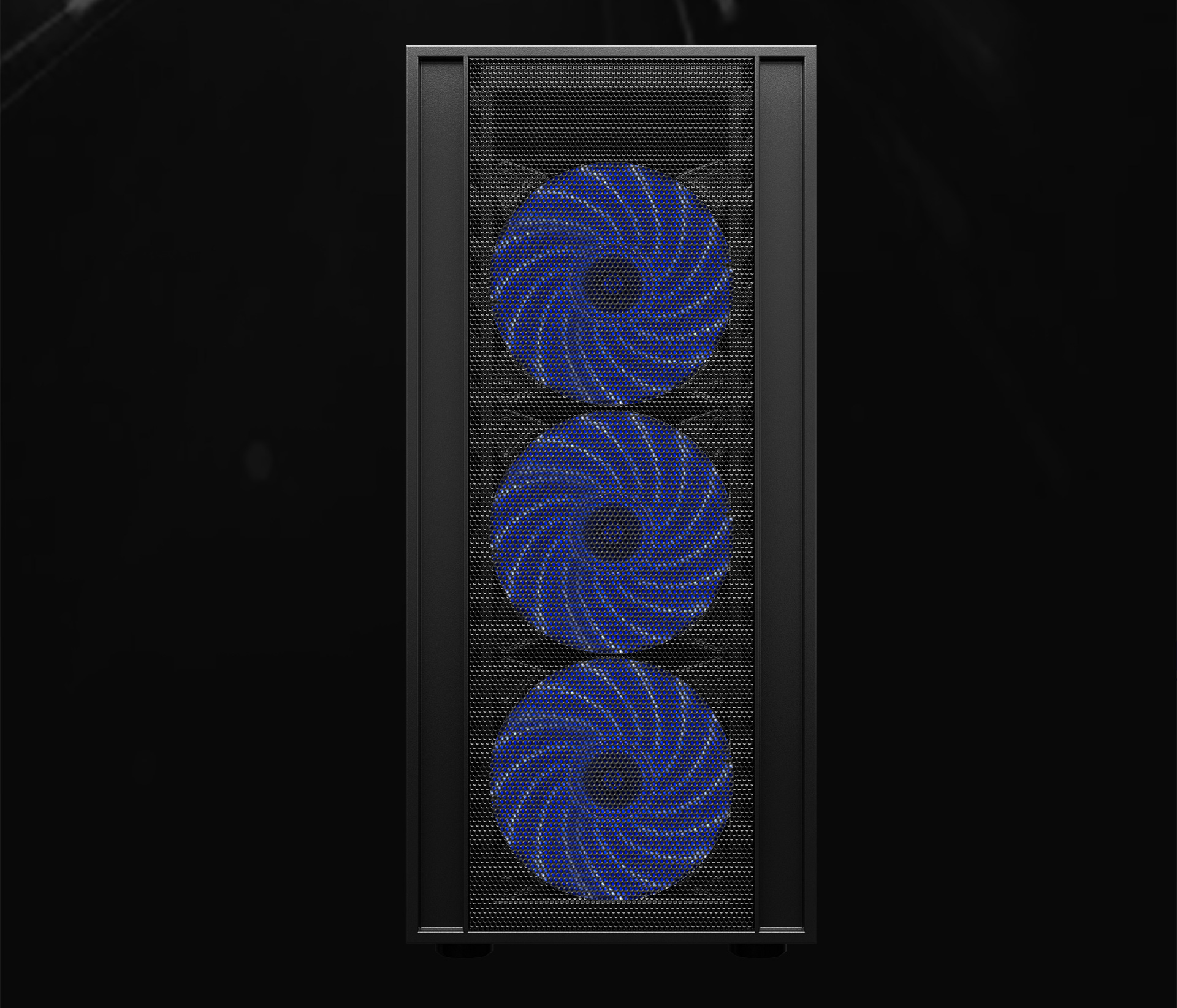

Highly Efficient
Dustproof Big Airflow Simple Modern

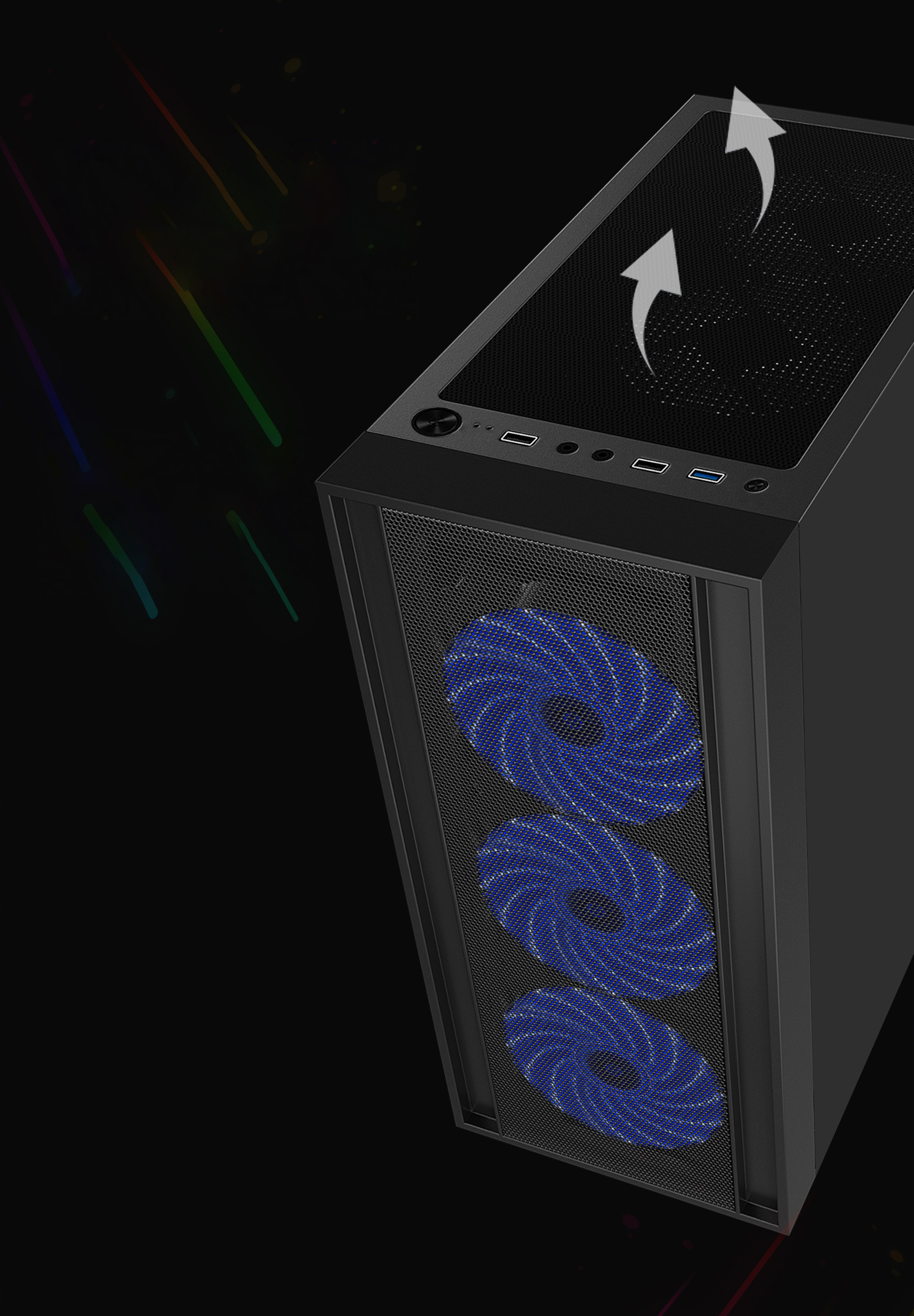

I/O PORTS
For better cable plugging
BIG Space
2.5" SSD*3
3.5" HDD*2

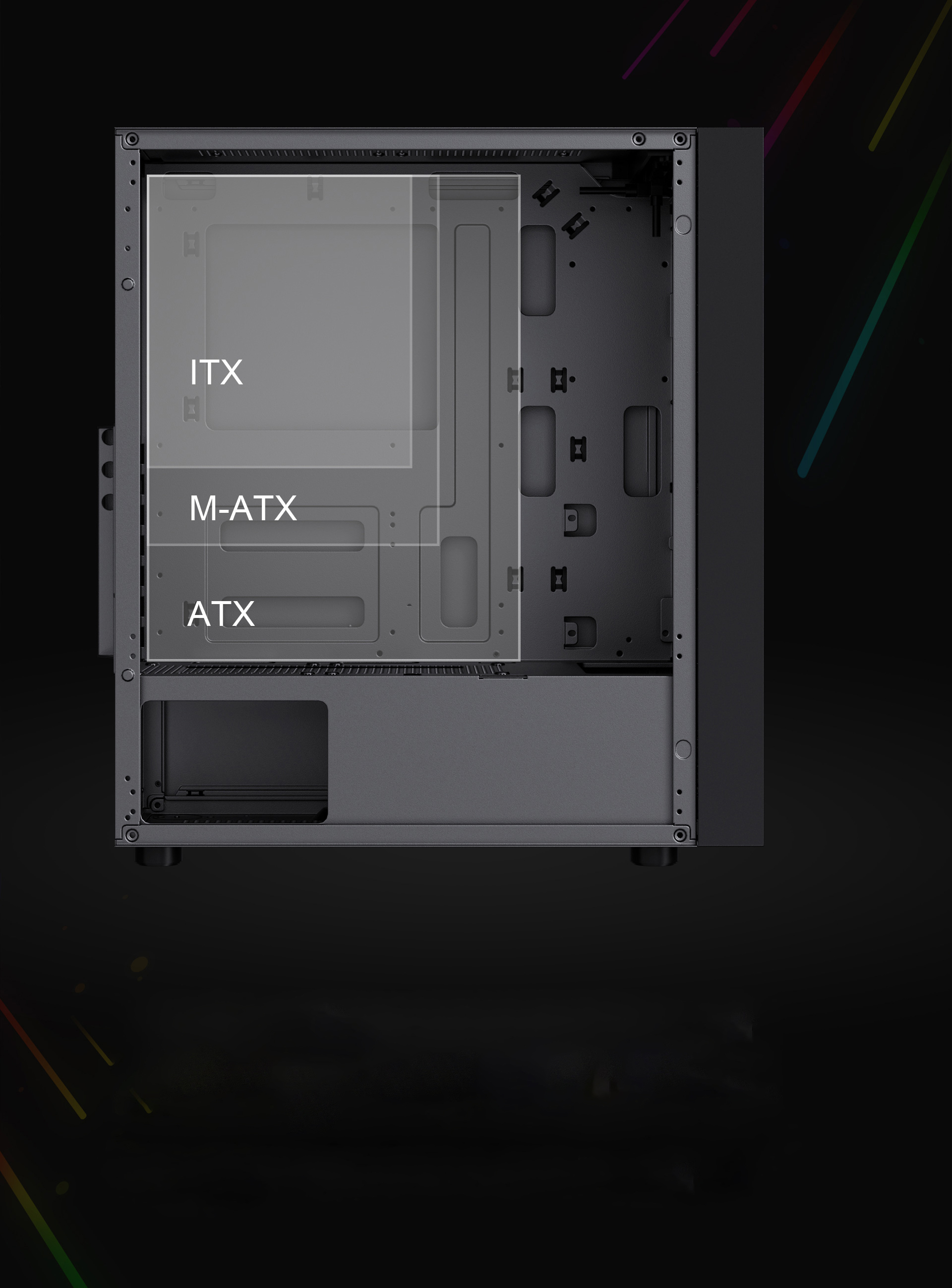

Support ATX or micro ATX & Mini ITX
Up to 240mm water cooling radiator
For better cable plugging
2.5" SSD*3
3.5" HDD*2
Support ATX or micro ATX & Mini ITX
Up to 240mm water cooling radiator

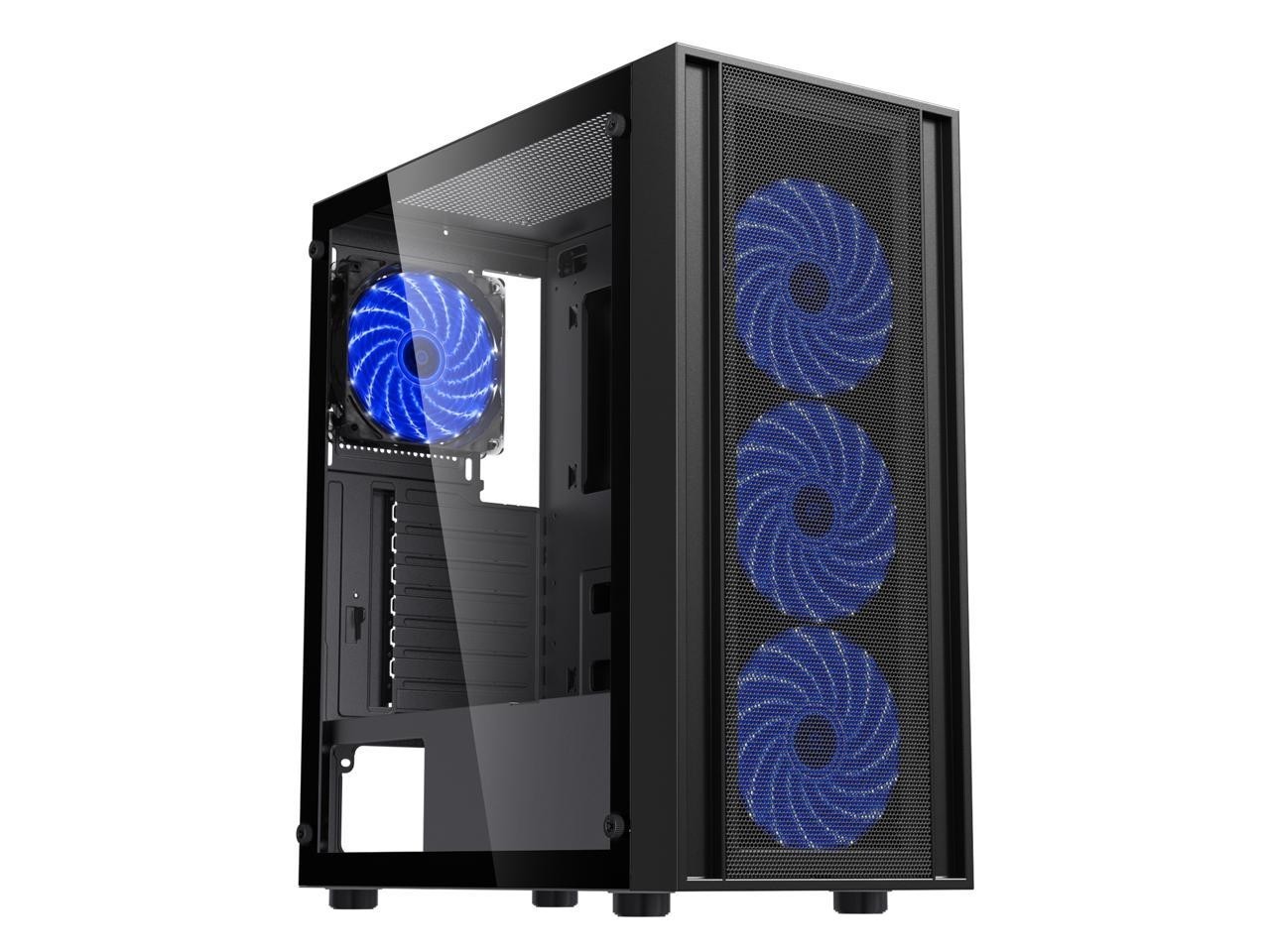

| Brand | DIYPC |
|---|---|
| Model | DIY-S03-BK |
| Type Type | ATX Mid Tower |
|---|---|
| Color | Black |
| Case Material | Steel / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted Power Supply Mounted | Bottom |

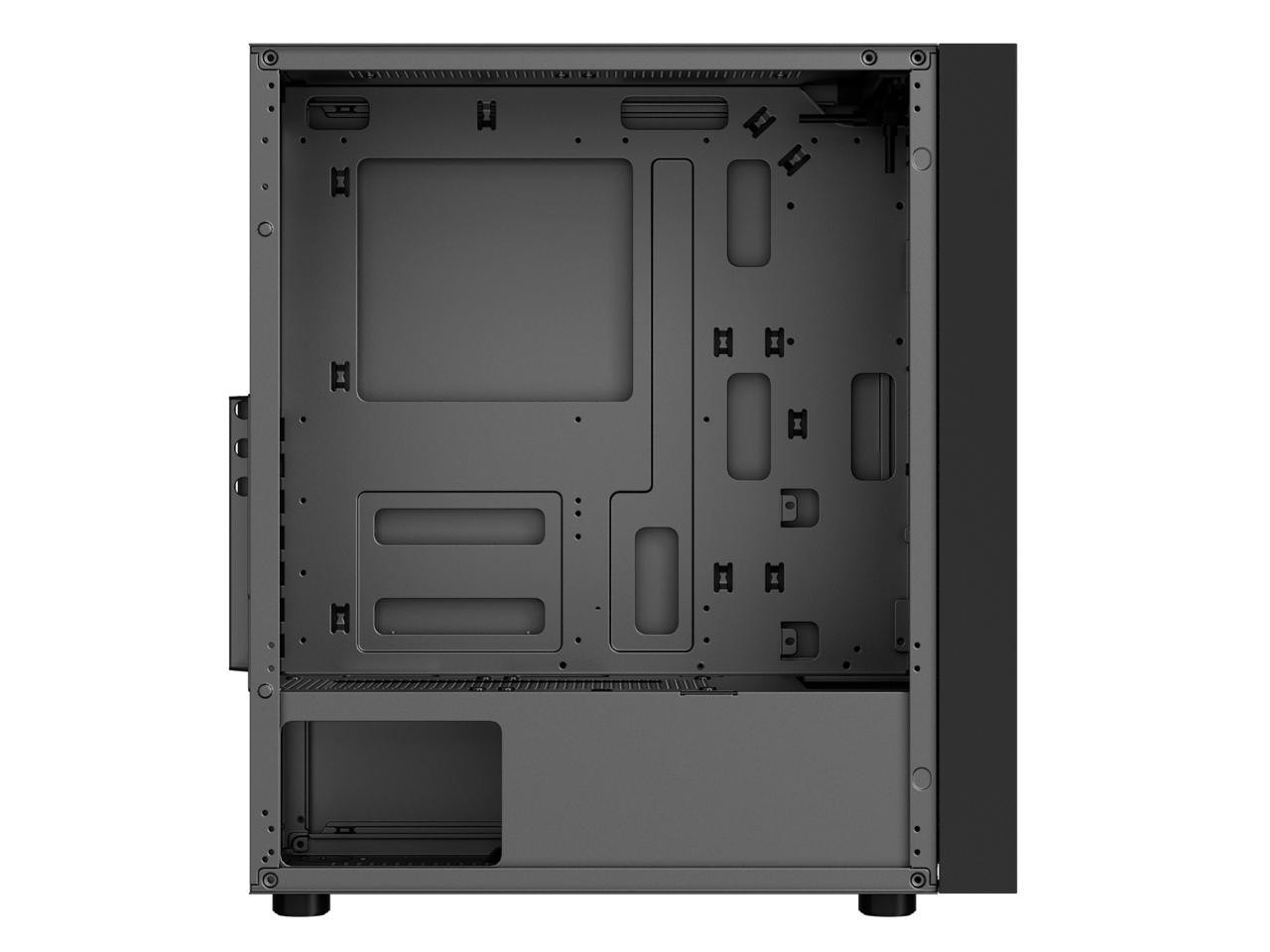

| Motherboard Compatibility Motherboard Compatibility | Micro ATX / ATX / Mini-ITX |
| Side Panel Window Side Panel Window | Yes |
| LED LED | Blue |
| Internal 3.5" Drive Bays | 2 |
|---|---|
| Internal 2.5" Drive Bays | 3 (SSD) |
| Expansion Slots Expansion Slots | 7 |
| Front Ports | 2 x USB 2.0 / 1 x USB 3.0 / Audio In & Out (HD) |
|---|

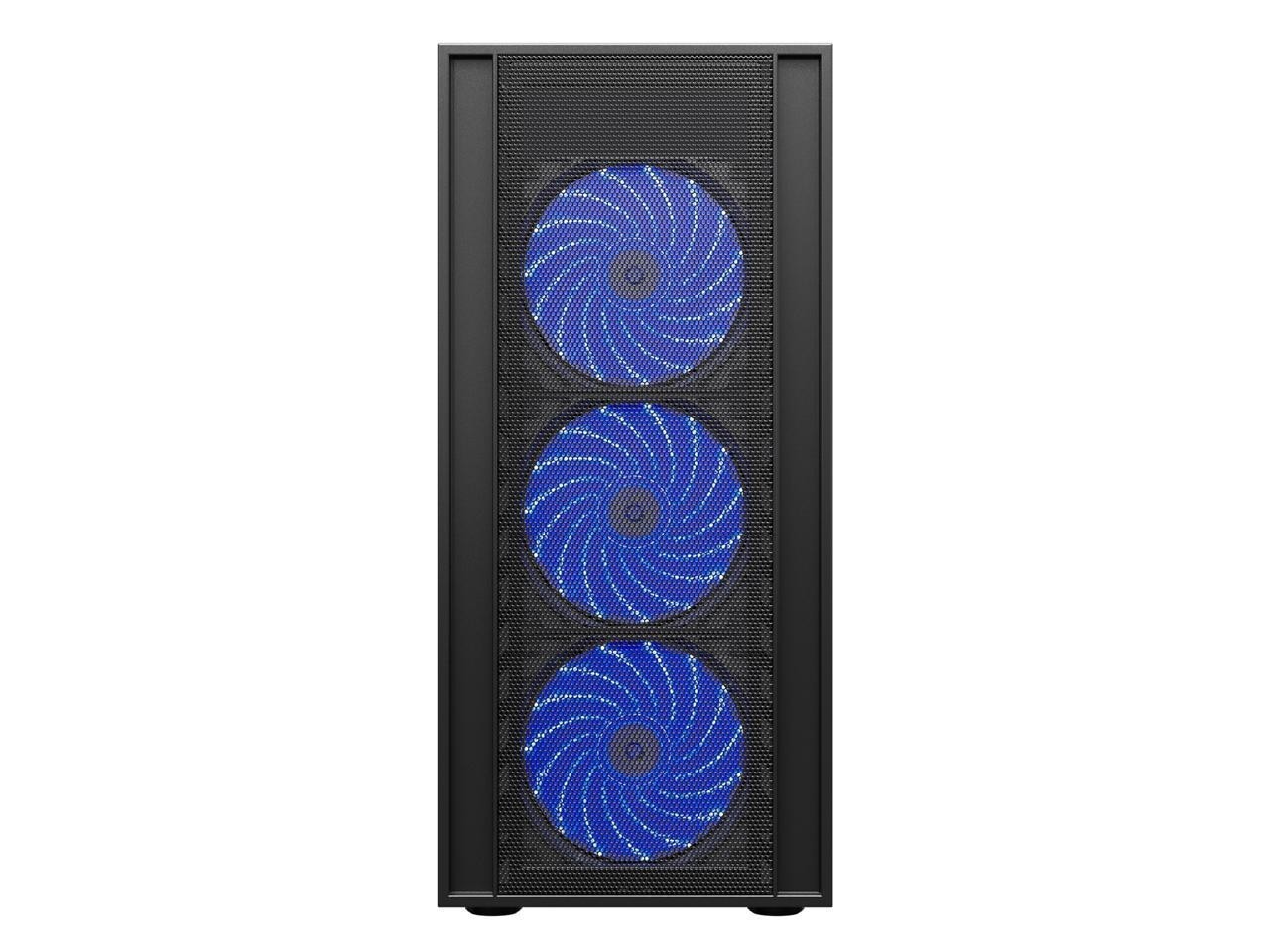

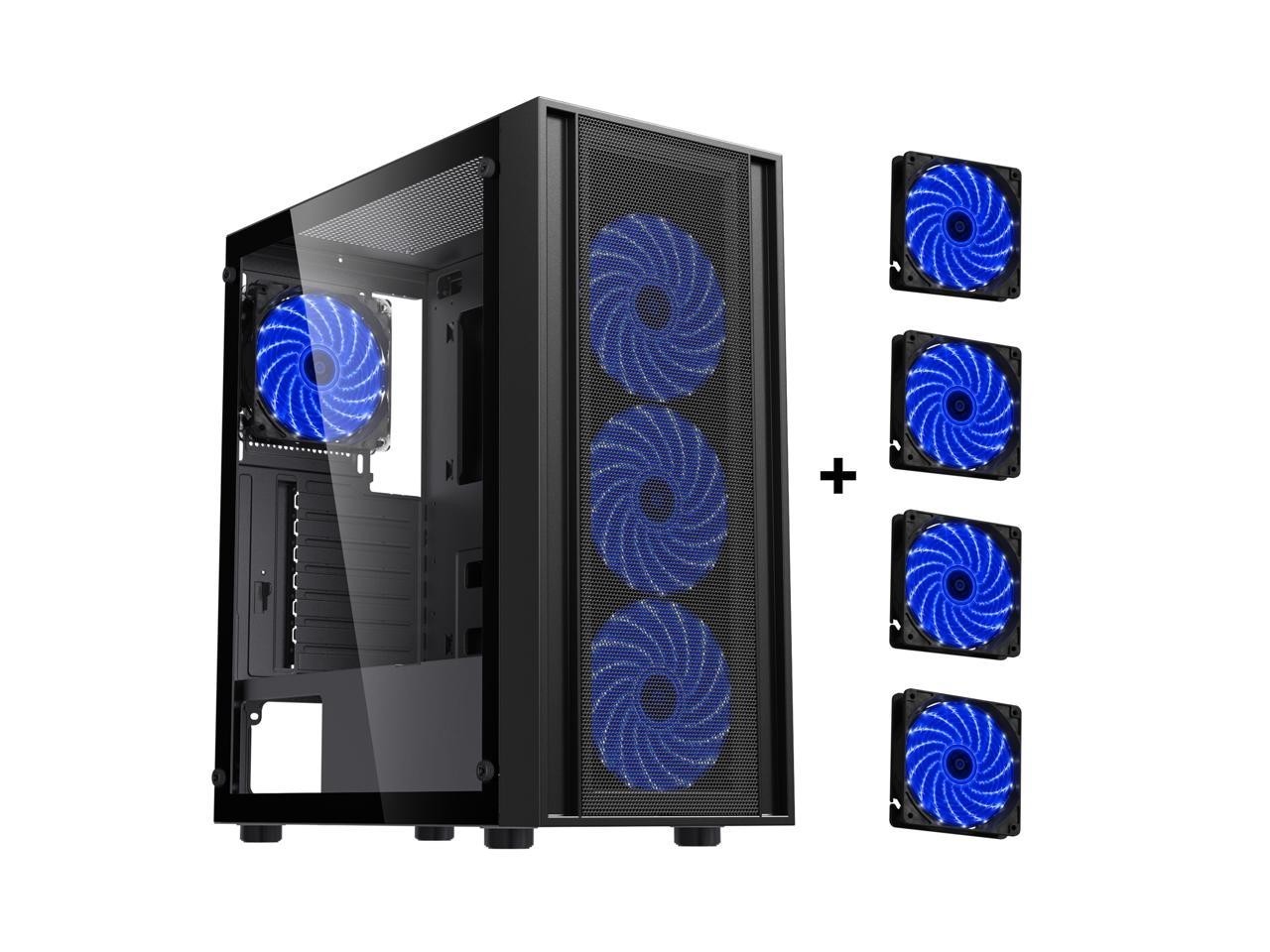

| Radiator Installed | Front: 3 x 120mm blue LED fans (Pre-Installed) Top: 2 x 120mm fan (Optional) PSU cover: 2 x 120mm fan (Optional) Rear: 1 x 120mm blue LED fan (Pre-Installed) |
|---|---|
| Radiator Options | Front /Top- Up to 240mm, rear x 120mm |
| Max GPU Length | 335 mm |
|---|---|
| Max CPU Cooler Height | 158 mm |
| Max PSU Length | 170 mm |

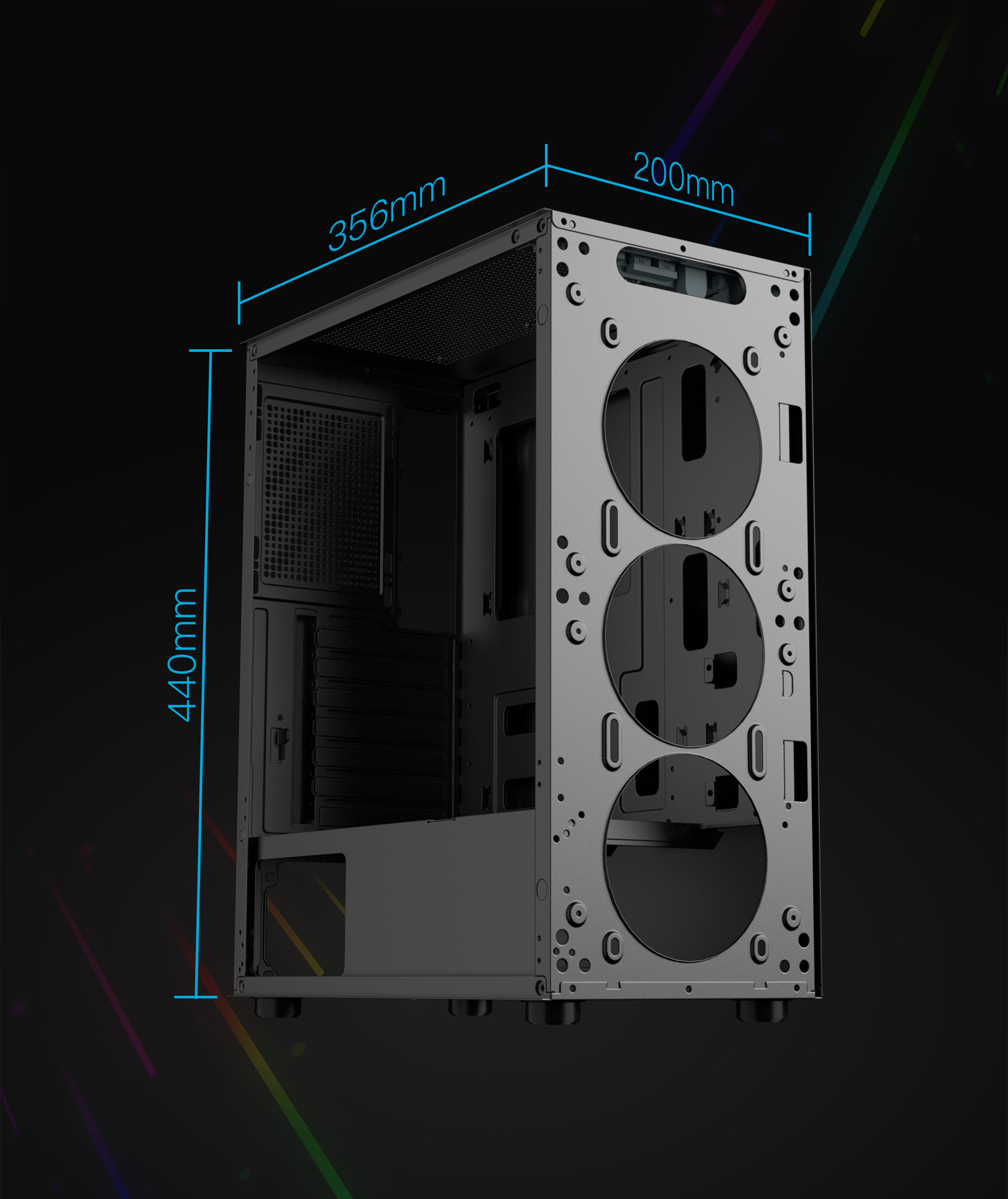

| Dimensions (H x W x D) | 17.6" x 8" x 15.6" |
| Weight | 10.50 lbs. |
| Features | Tempered glass side panel x 4mm thickness not only offers great protection, but also provides wide angle for optimized visualization while the system is running 4 x 120mm Blue LED fans (3 x front, 1 x rear) provide great cooling and dynamic cyber gaming atmosphere Water cooling ready - front /top can fit up to 240mm water cooling radiator Advanced cable management design – 38mm Advanced bottom-mounted power supply design Top mounted IO ports - USB 3.0 for up-to-date high speed data transfer 8 fans capability provide great cooling performance Magnetic dust filter at top and bottom - easy clean Support up to 158mm CPU cooler Support up to 335mm VGA card |
|---|
| Date First Available | December 18, 2023 |
|---|
